rgexf: Build, Import and Export GEXF Graph Files

The first R package to work with GEXF graph files (used in Gephi and others). rgexf allows reading and writing graph files, including:

Nodes/edges attributes,
GEXF viz attributes (such as color, size, and position),
Network dynamics (for both edges and nodes, including spells) and
Edges weighting.

Users can build/handle graphs element-by-element or through data-frames, visualize the graph on a web browser through ~~sigmajs javascript~~ gexf-js library and interact with the igraph package.

Changes in rgexf version 0.16.3 (2024-06-27)

Dynamically loaded components in the Rd files were removed to comply with new CRAN policies.

Installation

To install the latest version of rgexf, you can use devtools

library(devtools)
install_github("gvegayon/rgexf")

The more stable (but old) version of rgexf can be found on CRAN too:

install.packages("rgexf")

Citation

citation(package="rgexf")

To cite rgexf in publications use the following paper:

  Vega Yon, G. G., (2021). Building, Importing, and Exporting GEXF
  Graph Files with rgexf. Journal of Open Source Software, 6(64), 3456,
  https://doi.org/10.21105/joss.03456

And the actual R package:

  Vega Yon G, Fábrega Lacoa J, Kunst J (2024). _netdiffuseR: Build,
  Import and Export GEXF Graph Files_. doi:10.5281/zenodo.5182708
  <https://doi.org/10.5281/zenodo.5182708>, R package version 0.17.0,
  <https://github.com/gvegayon/rgexf>.

To see these entries in BibTeX format, use 'print(<citation>,
bibtex=TRUE)', 'toBibtex(.)', or set
'options(citation.bibtex.max=999)'.

Examples

Example 1: Importing GEXF files

We can use the read.gexf function to read GEXF files into R:

# Loading the package
library(rgexf)

g <- system.file("gexf-graphs/lesmiserables.gexf", package="rgexf")
g <- read.gexf(g)
head(g) # Taking a look at the first handful

<?xml version="1.0" encoding="UTF-8"?>
<gexf xmlns="http://www.gexf.net/1.3" xmlns:viz="http://www.gexf.net/1.3/viz" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" version="1.3" xsi:schemaLocation="http://www.gexf.net/1.3 http://www.gexf.net/1.3/gexf.xsd">
  <meta lastmodifieddate="2016-11-09">
    <creator>Gephi 0.9</creator>
    <description/>
  </meta>
  <graph defaultedgetype="undirected" mode="static">
    <attributes class="node" mode="static">
      <attribute id="modularity_class" title="Modularity Class" type="integer"/>
    </attributes>
    <nodes>
      <node id="11" label="Valjean">
        <attvalues>
          <attvalue for="modularity_class" value="1"/>
        </attvalues>
        <viz:size value="100.0"/>
        <viz:position x="-87.93029" y="6.8120565"/>
        <viz:color r="245" g="91" b="91"/>
      </node>
      <node id="48" label="Gavroche">
        <attvalues>
          <attvalue for="modularity_class" value="8"/>
        </attvalues>
        <viz:size value="61.600006"/>
        <viz:position x="387.89572" y="-110.462326"/>
        <viz:color r="91" g="245" b="91"/>
      </node>
      <node id="55" label="Marius">
        <attvalues>
          <attvalue for="modularity_class" value="6"/>
        </attvalues>
        <viz:size value="53.37143"/>
        <viz:position x="206.44687" y="13.805411"/>
        <viz:color r="194" g="91" b="245"/>
      </node>
      <node id="27" label="Javert">
        <attvalues>
          <attvalue for="modularity_class" value="7"/>
        </attvalues>
        <viz:size value="47.88571"/>
        <viz:position x="-81.46074" y="204.20204"/>
        <viz:color r="91" g="245" b="194"/>
      </node>
      <node id="25" label="Thenardier">
        <attvalues>
          <attvalue for="modularity_class" value="7"/>
        </attvalues>
        <viz:size value="45.142853"/>
        <viz:position x="82.80825" y="203.1144"/>
        <viz:color r="91" g="245" b="194"/>
      </node>
      <node id="23" label="Fantine">
        <attvalues>
          <attvalue for="modularity_class" value="2"/>
        </attvalues>
        <viz:size value="42.4"/>
        <viz:position x="-313.42786" y="289.44803"/>
        <viz:color r="91" g="194" b="245"/>
      </node>
            ...
     </nodes>
    <edges>
      <edge id="0" source="1" target="0"/>
      <edge id="1" source="2" target="0" weight="8.0"/>
      <edge id="2" source="3" target="0" weight="10.0"/>
      <edge id="3" source="3" target="2" weight="6.0"/>
      <edge id="4" source="4" target="0"/>
      <edge id="5" source="5" target="0"/>
            ...
     </edges>
  </graph>
</gexf>

Moreover, we can use the gexf.to.igraph() function to convert the gexf object into an igraph object:

library(igraph)

Attaching package: 'igraph'

The following objects are masked from 'package:stats':

    decompose, spectrum

The following object is masked from 'package:base':

    union

ig <- gexf.to.igraph(g)

op <- par(mai = rep(0, 4)) # Making room
plot(ig)

par(op)

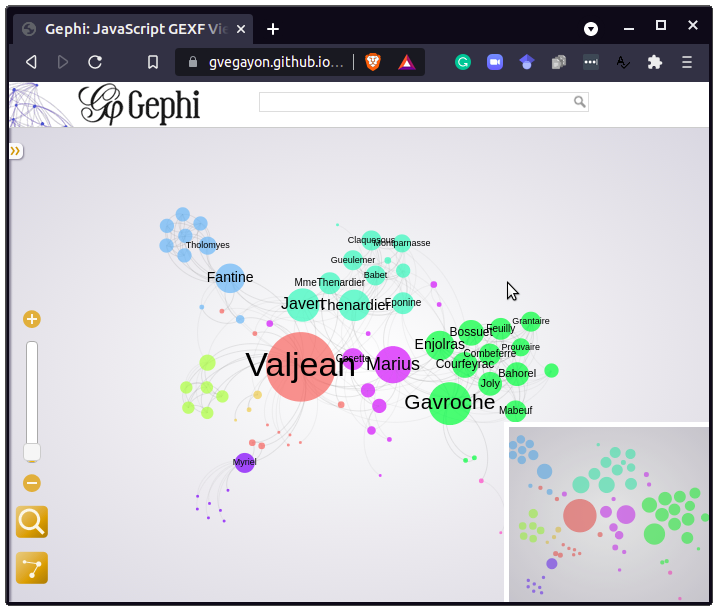

Using the plot.gexf method–which uses the gexf-js JavaScript library–results in a Web visualization of the graph, like this:

plot(g)

A live version of the figure is available here.

Example 2: Static net

# Creating a group of individuals and their relations
people <- data.frame(matrix(c(1:4, 'juan', 'pedro', 'matthew', 'carlos'),ncol=2))
people

  X1      X2
1  1    juan
2  2   pedro
3  3 matthew
4  4  carlos

# Defining the relations structure
relations <- data.frame(matrix(c(1,4,1,2,1,3,2,3,3,4,4,2), ncol=2, byrow=T))
relations

# Getting things done
write.gexf(people, relations)

<?xml version="1.0" encoding="UTF-8"?>
<gexf xmlns="http://www.gexf.net/1.3" xmlns:viz="http://www.gexf.net/1.3/viz" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.gexf.net/1.3 http://www.gexf.net/1.3/gexf.xsd" version="1.3">
  <meta lastmodifieddate="2024-06-30">
    <creator>NodosChile</creator>
    <description>A GEXF file written in R with "rgexf"</description>
    <keywords>GEXF, NodosChile, R, rgexf, Gephi</keywords>
  </meta>
  <graph mode="static" defaultedgetype="undirected">
    <nodes>
      <node id="1" label="juan">
        <viz:color r="255" g="99" b="71" a="1"/>
        <viz:position x="79.2065507374859" y="-250" z="0"/>
        <viz:size value="125"/>
      </node>
      <node id="2" label="pedro">
        <viz:color r="255" g="99" b="71" a="1"/>
        <viz:position x="250" y="91.9438021126364" z="0"/>
        <viz:size value="125"/>
      </node>
      <node id="3" label="matthew">
        <viz:color r="255" g="99" b="71" a="1"/>
        <viz:position x="-79.815764224491" y="250" z="0"/>
        <viz:size value="125"/>
      </node>
      <node id="4" label="carlos">
        <viz:color r="255" g="99" b="71" a="1"/>
        <viz:position x="-250" y="194.911331255884" z="0"/>
        <viz:size value="125"/>
      </node>
    </nodes>
    <edges>
      <edge id="0" source="1" target="4" weight="1"/>
      <edge id="1" source="1" target="2" weight="1"/>
      <edge id="2" source="1" target="3" weight="1"/>
      <edge id="3" source="2" target="3" weight="1"/>
      <edge id="4" source="3" target="4" weight="1"/>
      <edge id="5" source="4" target="2" weight="1"/>
    </edges>
  </graph>
</gexf>

Example 3: Dynamic net

# Defining the dynamic structure, note that there are some nodes that have NA at the end.
time<-matrix(c(10.0,13.0,2.0,2.0,12.0,rep(NA,3)), nrow=4, ncol=2)
time

     [,1] [,2]
[1,]   10   12
[2,]   13   NA
[3,]    2   NA
[4,]    2   NA

# Getting things done
write.gexf(people, relations, nodeDynamic=time)

<?xml version="1.0" encoding="UTF-8"?>
<gexf xmlns="http://www.gexf.net/1.3" xmlns:viz="http://www.gexf.net/1.3/viz" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.gexf.net/1.3 http://www.gexf.net/1.3/gexf.xsd" version="1.3">
  <meta lastmodifieddate="2024-06-30">
    <creator>NodosChile</creator>
    <description>A GEXF file written in R with "rgexf"</description>
    <keywords>GEXF, NodosChile, R, rgexf, Gephi</keywords>
  </meta>
  <graph mode="dynamic" start="2" end="13" timeformat="double" defaultedgetype="undirected">
    <nodes>
      <node id="1" label="juan" start="10" end="12">
        <viz:color r="255" g="99" b="71" a="1"/>
        <viz:position x="250" y="250" z="0"/>
        <viz:size value="125"/>
      </node>
      <node id="2" label="pedro" start="13" end="13">
        <viz:color r="255" g="99" b="71" a="1"/>
        <viz:position x="-250" y="-250" z="0"/>
        <viz:size value="125"/>
      </node>
      <node id="3" label="matthew" start="2" end="13">
        <viz:color r="255" g="99" b="71" a="1"/>
        <viz:position x="23.8452238193327" y="113.652288092202" z="0"/>
        <viz:size value="125"/>
      </node>
      <node id="4" label="carlos" start="2" end="13">
        <viz:color r="255" g="99" b="71" a="1"/>
        <viz:position x="77.7158886485609" y="-219.373757312507" z="0"/>
        <viz:size value="125"/>
      </node>
    </nodes>
    <edges>
      <edge id="0" source="1" target="4" weight="1"/>
      <edge id="1" source="1" target="2" weight="1"/>
      <edge id="2" source="1" target="3" weight="1"/>
      <edge id="3" source="2" target="3" weight="1"/>
      <edge id="4" source="3" target="4" weight="1"/>
      <edge id="5" source="4" target="2" weight="1"/>
    </edges>
  </graph>
</gexf>

Example 4: More complex… Dynamic graph with attributes both for nodes and edges

First, we define dynamics

time.nodes<-matrix(c(10.0,13.0,2.0,2.0,12.0,rep(NA,3)), nrow=4, ncol=2)
time.nodes

     [,1] [,2]
[1,]   10   12
[2,]   13   NA
[3,]    2   NA
[4,]    2   NA

time.edges<-matrix(c(10.0,13.0,2.0,2.0,12.0,1,5,rep(NA,5)), nrow=6, ncol=2)
time.edges

     [,1] [,2]
[1,]   10    5
[2,]   13   NA
[3,]    2   NA
[4,]    2   NA
[5,]   12   NA
[6,]    1   NA

Now we define the attribute values

# Defining a data frame of attributes for nodes and edges
node.att <- data.frame(letrafavorita=letters[1:4], numbers=1:4, stringsAsFactors=F)
node.att

  letrafavorita numbers
1             a       1
2             b       2
3             c       3
4             d       4

edge.att <- data.frame(letrafavorita=letters[1:6], numbers=1:6, stringsAsFactors=F)
edge.att

  letrafavorita numbers
1             a       1
2             b       2
3             c       3
4             d       4
5             e       5
6             f       6

# Getting the things done
write.gexf(nodes=people, edges=relations, edgeDynamic=time.edges,
           edgesAtt=edge.att, nodeDynamic=time.nodes, nodesAtt=node.att)

<?xml version="1.0" encoding="UTF-8"?>
<gexf xmlns="http://www.gexf.net/1.3" xmlns:viz="http://www.gexf.net/1.3/viz" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.gexf.net/1.3 http://www.gexf.net/1.3/gexf.xsd" version="1.3">
  <meta lastmodifieddate="2024-06-30">
    <creator>NodosChile</creator>
    <description>A GEXF file written in R with "rgexf"</description>
    <keywords>GEXF, NodosChile, R, rgexf, Gephi</keywords>
  </meta>
  <graph mode="dynamic" start="1" end="13" timeformat="double" defaultedgetype="undirected">
    <attributes class="node" mode="static">
      <attribute id="att1" title="letrafavorita" type="string"/>
      <attribute id="att2" title="numbers" type="integer"/>
    </attributes>
    <attributes class="edge" mode="static">
      <attribute id="att1" title="letrafavorita" type="string"/>
      <attribute id="att2" title="numbers" type="integer"/>
    </attributes>
    <nodes>
      <node id="1" label="juan" start="10" end="12">
        <attvalues>
          <attvalue for="att1" value="a"/>
          <attvalue for="att2" value="1"/>
        </attvalues>
        <viz:color r="255" g="99" b="71" a="1"/>
        <viz:position x="250" y="116.263539042396" z="0"/>
        <viz:size value="125"/>
      </node>
      <node id="2" label="pedro" start="13" end="13">
        <attvalues>
          <attvalue for="att1" value="b"/>
          <attvalue for="att2" value="2"/>
        </attvalues>
        <viz:color r="255" g="99" b="71" a="1"/>
        <viz:position x="-162.569255531004" y="250" z="0"/>
        <viz:size value="125"/>
      </node>
      <node id="3" label="matthew" start="2" end="13">
        <attvalues>
          <attvalue for="att1" value="c"/>
          <attvalue for="att2" value="3"/>
        </attvalues>
        <viz:color r="255" g="99" b="71" a="1"/>
        <viz:position x="-250" y="-250" z="0"/>
        <viz:size value="125"/>
      </node>
      <node id="4" label="carlos" start="2" end="13">
        <attvalues>
          <attvalue for="att1" value="d"/>
          <attvalue for="att2" value="4"/>
        </attvalues>
        <viz:color r="255" g="99" b="71" a="1"/>
        <viz:position x="142.556872059596" y="89.0845907381178" z="0"/>
        <viz:size value="125"/>
      </node>
    </nodes>
    <edges>
      <edge id="0" source="1" target="4" start="10" end="5" weight="1">
        <attvalues>
          <attvalue for="att1" value="a"/>
          <attvalue for="att2" value="1"/>
        </attvalues>
      </edge>
      <edge id="1" source="1" target="2" start="13" end="13" weight="1">
        <attvalues>
          <attvalue for="att1" value="b"/>
          <attvalue for="att2" value="2"/>
        </attvalues>
      </edge>
      <edge id="2" source="1" target="3" start="2" end="13" weight="1">
        <attvalues>
          <attvalue for="att1" value="c"/>
          <attvalue for="att2" value="3"/>
        </attvalues>
      </edge>
      <edge id="3" source="2" target="3" start="2" end="13" weight="1">
        <attvalues>
          <attvalue for="att1" value="d"/>
          <attvalue for="att2" value="4"/>
        </attvalues>
      </edge>
      <edge id="4" source="3" target="4" start="12" end="13" weight="1">
        <attvalues>
          <attvalue for="att1" value="e"/>
          <attvalue for="att2" value="5"/>
        </attvalues>
      </edge>
      <edge id="5" source="4" target="2" start="1" end="13" weight="1">
        <attvalues>
          <attvalue for="att1" value="f"/>
          <attvalue for="att2" value="6"/>
        </attvalues>
      </edge>
    </edges>
  </graph>
</gexf>

Code of Conduct

We welcome contributions to rgexf. Whether reporting a bug, starting a discussion by asking a question, or proposing/requesting a new feature, please go by creating a new issue here so that we can talk about it.

Please note that the rgexf project is released with a Contributor Code of Conduct. By contributing to this project, you agree to abide by its terms

Session info

devtools::session_info()

─ Session info ───────────────────────────────────────────────────────────────
 setting  value
 version  R version 4.4.0 (2024-04-24)
 os       Ubuntu 22.04.4 LTS
 system   x86_64, linux-gnu
 ui       X11
 language (EN)
 collate  en_US.UTF-8
 ctype    en_US.UTF-8
 tz       America/Denver
 date     2024-06-30
 pandoc   3.1.1 @ /usr/bin/ (via rmarkdown)

─ Packages ───────────────────────────────────────────────────────────────────
 package     * version     date (UTC) lib source
 cachem        1.1.0       2024-05-16 [2] RSPM (R 4.4.0)
 cli           3.6.2       2023-12-11 [2] RSPM (R 4.3.0)
 devtools      2.4.5       2022-10-11 [2] RSPM (R 4.2.0)
 digest        0.6.35      2024-03-11 [2] RSPM (R 4.3.0)
 ellipsis      0.3.2       2021-04-29 [2] CRAN (R 4.1.1)
 evaluate      0.23        2023-11-01 [2] RSPM (R 4.3.0)
 fastmap       1.2.0       2024-05-15 [2] RSPM (R 4.4.0)
 fs            1.6.4       2024-04-25 [2] RSPM (R 4.3.0)
 glue          1.7.0       2024-01-09 [2] RSPM (R 4.3.0)
 htmltools     0.5.8.1     2024-04-04 [2] RSPM (R 4.3.0)
 htmlwidgets   1.6.4       2023-12-06 [2] RSPM (R 4.3.0)
 httpuv        1.6.15      2024-03-26 [2] RSPM (R 4.3.0)
 igraph      * 2.0.3       2024-03-13 [1] CRAN (R 4.4.0)
 jsonlite      1.8.8       2023-12-04 [2] RSPM (R 4.3.0)
 knitr         1.47        2024-05-29 [2] RSPM (R 4.4.0)
 later         1.3.2       2023-12-06 [2] RSPM (R 4.3.0)
 lifecycle     1.0.4       2023-11-07 [2] RSPM (R 4.3.0)
 magrittr      2.0.3       2022-03-30 [2] RSPM (R 4.2.0)
 memoise       2.0.1       2021-11-26 [2] RSPM (R 4.2.0)
 mime          0.12        2021-09-28 [2] RSPM (R 4.2.0)
 miniUI        0.1.1.1     2018-05-18 [2] CRAN (R 4.0.1)
 pkgbuild      1.4.4       2024-03-17 [2] RSPM (R 4.3.0)
 pkgconfig     2.0.3       2019-09-22 [2] CRAN (R 4.0.1)
 pkgload       1.3.4       2024-01-16 [2] RSPM (R 4.3.2)
 profvis       0.3.8       2023-05-02 [2] RSPM (R 4.2.0)
 promises      1.3.0       2024-04-05 [2] RSPM (R 4.3.0)
 purrr         1.0.2       2023-08-10 [2] RSPM (R 4.2.0)
 R6            2.5.1       2021-08-19 [2] RSPM (R 4.2.0)
 Rcpp          1.0.12      2024-01-09 [2] RSPM (R 4.3.0)
 remotes       2.5.0       2024-03-17 [2] RSPM (R 4.3.0)
 rgexf       * 0.17.0      2024-06-27 [1] local
 rlang         1.1.3       2024-01-10 [2] RSPM (R 4.3.0)
 rmarkdown     2.27        2024-05-17 [2] RSPM (R 4.4.0)
 servr         0.30        2024-03-23 [2] RSPM (R 4.3.0)
 sessioninfo   1.2.2       2021-12-06 [2] RSPM (R 4.2.0)
 shiny         1.8.1.1     2024-04-02 [2] RSPM (R 4.3.0)
 stringi       1.8.4       2024-05-06 [2] RSPM (R 4.4.0)
 stringr       1.5.1       2023-11-14 [2] RSPM (R 4.3.0)
 urlchecker    1.0.1       2021-11-30 [2] RSPM (R 4.2.0)
 usethis       2.2.3       2024-02-19 [2] RSPM (R 4.3.0)
 vctrs         0.6.5       2023-12-01 [2] RSPM (R 4.3.0)
 xfun          0.44        2024-05-15 [2] RSPM (R 4.4.0)
 XML           3.99-0.16.1 2024-01-22 [2] RSPM (R 4.3.0)
 xtable        1.8-4       2019-04-21 [2] CRAN (R 4.0.1)
 yaml          2.3.8       2023-12-11 [2] RSPM (R 4.3.0)

 [1] /usr/local/lib/R/site-library
 [2] /usr/lib/R/site-library
 [3] /usr/lib/R/library

──────────────────────────────────────────────────────────────────────────────

These binaries (installable software) and packages are in development.
They may not be fully stable and should be used with caution. We make no claims about them.
Health stats visible at Monitor.
