linf — L∞ Normalization and Dominant Community State Types for Compositional Data

linf is a lightweight R package for analysing compositional data through L-infinity (L∞) normalization and Dominant Community State Types (dCSTs).

Standard compositional approaches (CLR, ILR) map data into log-ratio coordinates, introducing complications with zeros and obscuring the dominant features that often drive biological variation. L∞ normalization takes a different path: divide each sample by its maximum, placing every observation on the boundary of the unit L∞ ball. The dominant feature — the one that achieves the maximum — defines a natural, parameter-free partition of samples into dominance sample sets.

At its core this is a rank-based analysis. Depth-1 dCSTs partition samples by the rank-1 (most abundant) feature. Depth-2 dCSTs refine each retained dominance-lineage using the rank-2 feature, and so on. This perspective connects dCSTs to one of the oldest branches of statistical methodology — rank analysis — while the L∞ geometry adds a principled compositional framework and a single, interpretable support threshold n₀.

This package accompanies: Gajer & Ravel (2025), A New Approach to Compositional Data Analysis using L∞-normalization with Applications to Vaginal Microbiome (arXiv:2503.21543).

Installation

# From GitHub (development version)
# install.packages("devtools")
devtools::install_github("pgajer/linf", build_vignettes = TRUE)

# From CRAN
install.packages("linf")

Features

L∞ normalization — normalize.linf(): row-wise division by maximum, mapping each sample to the L∞ unit-ball boundary.
Dominant-feature assignment — linf.cells(): rank-1 assignment per sample, returning indices, labels, and level sets.
Truncated dCSTs — linf.csts(): retain dominance sample sets with support ≥ n₀, reassign rare dominants by restricted argmax.
Iterative refinement — refine.linf.csts(): depth-2+ dCSTs via successive rank decomposition.
Landmark profiles — linf.landmarks(): representative compositional profiles (endpoint max/min, mean) for each dCST.
ASV filtering — filter.asv(): library-size and prevalence filtering for amplicon count matrices.
Pipeline wrapper — asv.to.linf.csts(): counts → filter → normalise → truncated dCSTs in one call.

Quick Start

library(linf)

set.seed(1)

# toy counts (samples × features)
S.counts <- matrix(rpois(10 * 3, 5), nrow = 10, ncol = 3,
                   dimnames = list(paste0("s", 1:10), c("A", "B", "C")))

# L∞ relatives (nonzero rows have max 1; zeros remain zero)
Z <- normalize.linf(S.counts)
apply(Z, 1, max)
#> returns 1 for nonzero rows, 0 for all-zero rows

# Dominant-feature assignments: indices + labels
cells <- linf.cells(Z)
table(cells$label, useNA = "ifany")

# Truncated dCSTs: retain states with at least n0 samples
res <- linf.csts(Z, n0 = 4)
table(res$cell.label, useNA = "ifany")

Gut Microbiome Demonstration

The figure below illustrates depth-1 dCSTs in a bundled set of 766 gut microbiome samples from the American Gut Project (AGP). The subset was deliberately stratified to include every sample assigned to four selected uncommon dCSTs; the remaining slots are a seed-42 simple random sample from the eligible background. Phenotypes do not influence selection. The object is suitable for demonstrating the package workflow, but its phenotype frequencies, effect sizes, and p-values must not be interpreted as population estimates because inclusion probabilities differ by dCST.

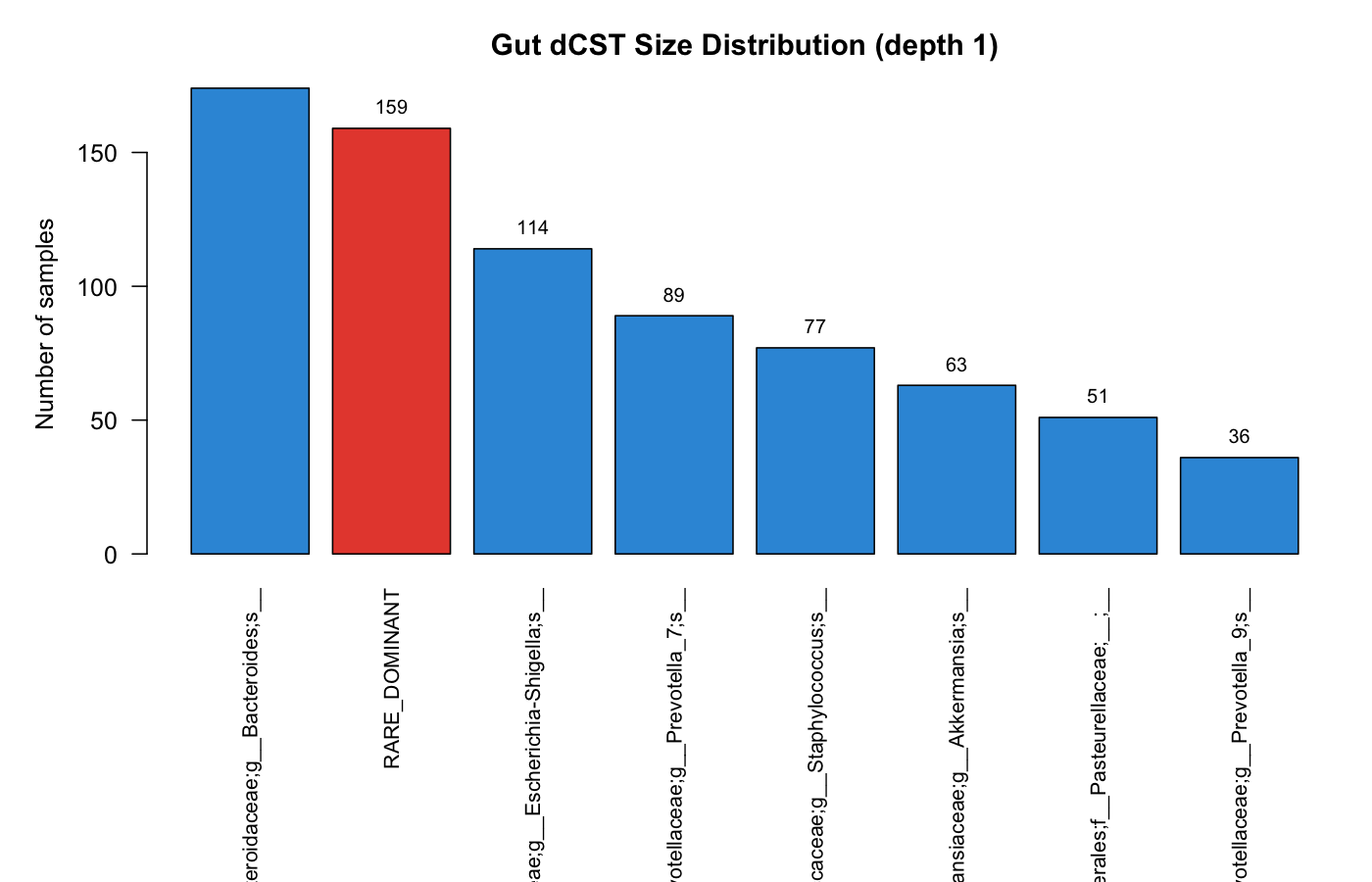

dCST Size Distribution

Barplot of depth-1 dCST sizes in 766 AGP gut samples

The largest depth-1 dCSTs in this selected subset are Bacteroides, Escherichia-Shigella, and RARE_DOMINANT. The red bar marks RARE_DOMINANT—samples whose rank-1 taxon does not form a sufficiently supported dominance sample set at the chosen threshold.

See vignette("linf-intro") for the package-safe demonstration. The full-analysis source uses an independently selected 5,000-sample analysis cohort and is maintained as a companion repository article rather than a package vignette.

Vignettes

The package ships with two vignettes:

Dominant Community State Types: From Normalization to a Gut Demonstration — a step-by-step tutorial covering L∞ normalization, dominant-feature assignment, truncated dCSTs, and descriptive exploration of the bundled AGP gut data.
dCSTs for Vaginal Microbiome Data — applying the pipeline to the Valencia 2k vaginal dataset, demonstrating how dCSTs recover the classical community state types (CST I–V) without supervised training.

browseVignettes("linf")

Notes & Conventions

Dot-delimited function names (e.g., filter.asv, normalize.linf).
linf.cells() is invariant to positive row scaling (counts vs relatives).
Ties resolve to the first maximum (as in max.col(..., ties.method = "first")).
All-zero rows get NA for both index and label.

The function name linf.cells() and cell.* result fields are retained for backward compatibility. In prose, the current nomenclature is dominance sample set at depth 1 and dominance-lineage for a retained hierarchical dCST label.

Citation

If you use this package, please cite:

Gajer, P. & Ravel, J. (2025). A New Approach to Compositional Data Analysis using L∞-normalization with Applications to Vaginal Microbiome. arXiv preprint arXiv:2503.21543 [stat.CO]. doi: 10.48550/arXiv.2503.21543

BibTeX

@article{gajer2025linf,
  title   = {A New Approach to Compositional Data Analysis using
             {$L^{\infty}$}-normalization with Applications to
             Vaginal Microbiome},
  author  = {Gajer, Pawel and Ravel, Jacques},
  year    = {2025},
  eprint  = {2503.21543},
  archivePrefix = {arXiv},
  primaryClass  = {stat.CO},
  journal = {arXiv preprint arXiv:2503.21543},
  doi     = {10.48550/arXiv.2503.21543},
  url     = {https://arxiv.org/abs/2503.21543}
}
