havel

The goal of havel is to vizualize and tabulate dependencies in R packages. This will help R package developers identify dependencies that contribute more to the dependency load and/or are easier to remove.

Installation

You can install the development version of havel from GitHub with:

# install.packages("pak")
pak::pak("andrewGhazi/havel")

Once available on CRAN, install like so:

install.packages("havel")

Example

havel has two main functions: plot_deps_graph() and uniq_pkg_deps().

plot_deps_graph()

Use plot_deps_graph() to look up and plot the dependency graph of a package:

library(havel)

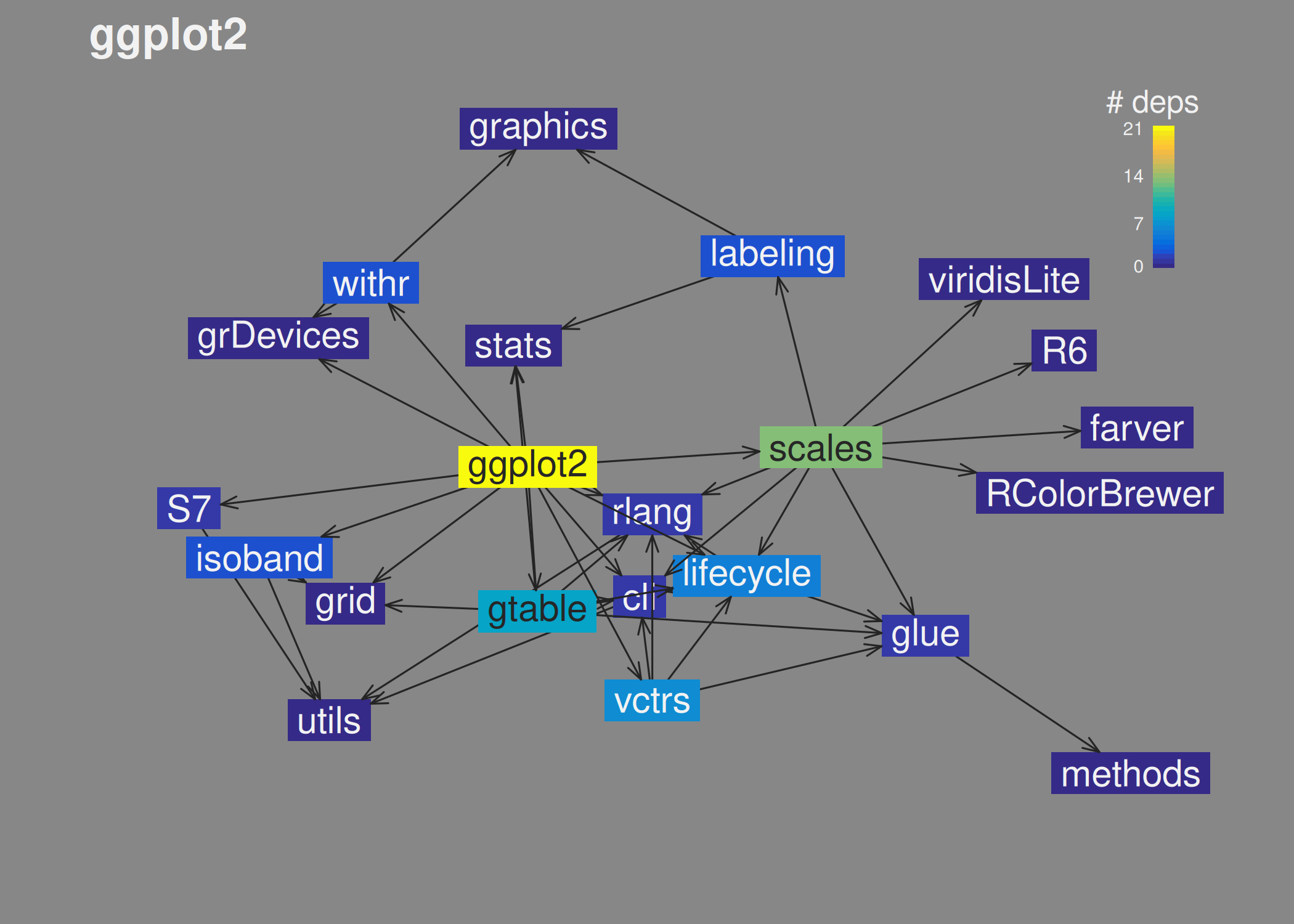

plot_deps_graph("ggplot2")

You can see that:

• ggplot2 has 21 dependencies in total (direct and indirect).
• On the right, the scales package contributes several dependencies that nothing else depends on. If the ggplot2 developers were looking to lighten their package (not that they should), eliminating the dependency on scales might be a good place to start looking.

Another example: What if I wanted to remove Rcpp as a dependency of havel itself?

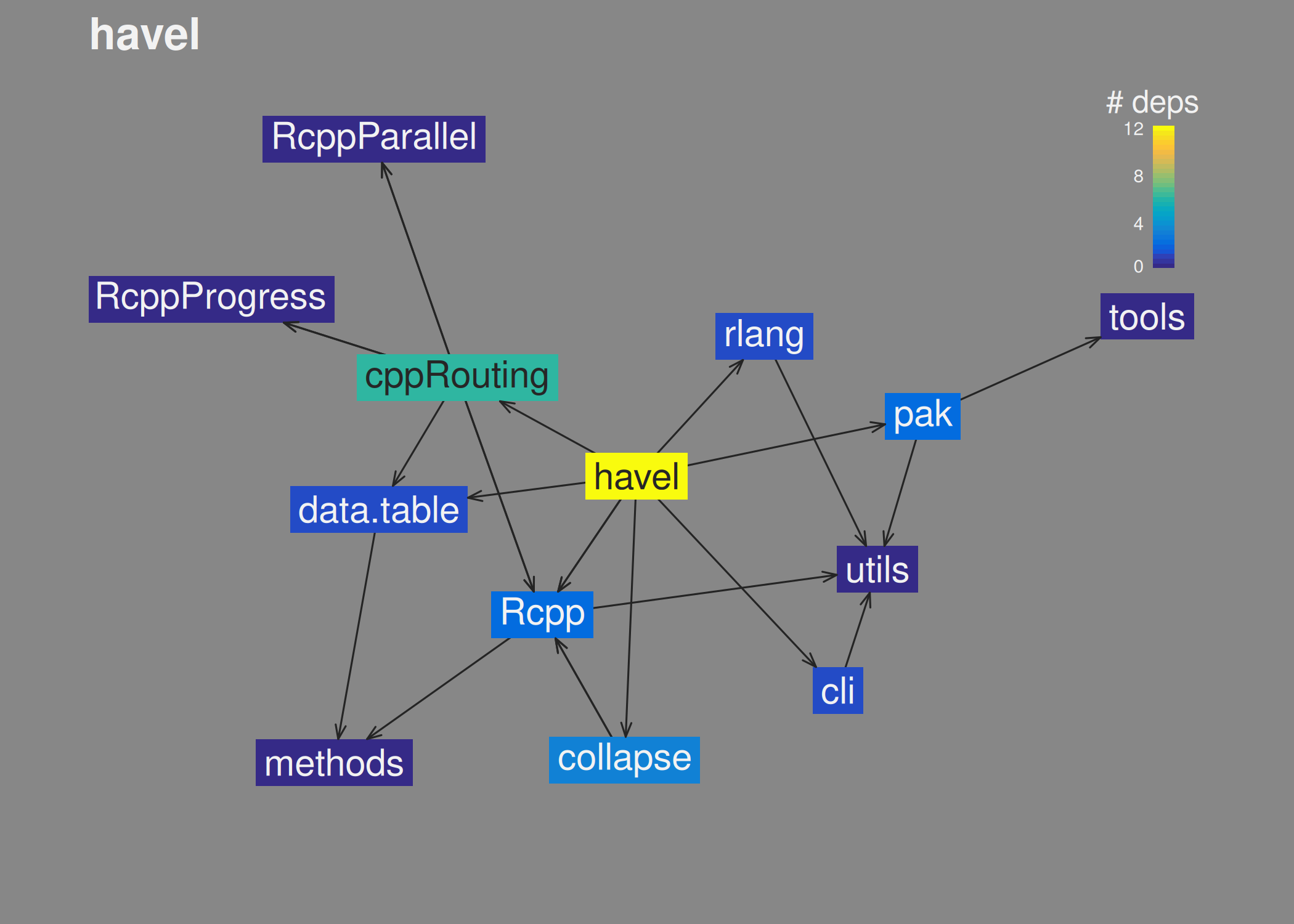

plot_deps_graph("andrewGhazi/havel") # looks it up on GitHub

Well, looks like that would be difficult. Even if I removed the direct dependency, there would still be an indirect dependency on Rcpp through collapse and cppRouting. I would need to remove all three to avoid dependence on Rcpp.

uniq_pkg_deps()

uniq_pkg_deps() tabulates what’s visually apparent on the plot:

uniq_pkg_deps("ggplot2")
#>            p1 n_uniq                                   uniq_pkgs
#>        <char>  <num>                                      <list>
#>  1:    scales      6 viridisLite,labeling,R6,farver,RColorBrewer
#>  2:       cli      1
#>  3: grDevices      1
#>  4:      grid      1
#>  5:    gtable      1
#>  6:   isoband      1
#>  7: lifecycle      1
#>  8:     rlang      1
#>  9:        S7      1
#> 10:     stats      1
#> 11:     vctrs      1
#> 12:     withr      1

scales introduces six unique dependencies to ggplot2, including itself.

Sometimes there’s no single package that introduces many unique dependencies, but there may be a pair or triplet that does. You can check the impact of removing each combination of order = 2 packages like so:

uniq_pkg_deps("ggplot2", order = 2) |>
  head()
#>           p1     p2 n_uniq                                            uniq_pkgs
#>       <char> <char>  <num>                                               <list>
#> 1:    scales  withr      8 viridisLite,labeling,graphics,R6,farver,RColorBrewer
#> 2:       cli scales      7          viridisLite,labeling,R6,farver,RColorBrewer
#> 3: grDevices scales      7          viridisLite,labeling,R6,farver,RColorBrewer
#> 4:      grid scales      7          viridisLite,labeling,R6,farver,RColorBrewer
#> 5:    gtable scales      7          viridisLite,labeling,R6,farver,RColorBrewer
#> 6:   isoband scales      7          viridisLite,labeling,R6,farver,RColorBrewer

scales + withr introduce eight.

Related/prior work

There are other packages / posts out there on this type of thing:

• miniCRAN has a vignette on similar plotting functionality: “Using miniCRAN to identify package dependencies”.
• pkgnet offers an expansive dependency analysis suite.
• depgraph (on GitHub only, not CRAN) is pretty similar but uses different aesthetic mappings.
• DependenciesGraphs and pkgdepR visualize the dependencies of functions used within a package.
• pkgndep visualizes similar information in a heatmap format, as well as provides different “heaviness” metrics.

havel offers some unique advantages nonetheless:

• It uses pak::pkg_deps() to look up the dependency connections instead of tools::package_dependencies(). This enables more versatile lookups of packages on Bioc, GitHub, etc.
• havel itself is fairly light and fast, depending only on pak, some fastverse packages, and base R graphics…
  • …but it includes a ggplot version too in the Suggests if you prefer that. Set gg = TRUE.
• The default plotting parameters are carefully hand-crafted to look nice :)

FAQ

Why’d you make this?

• I was annoyed by packages with hundreds of dependencies and wanted to be able to quickly generate passive-aggressive plots visualizing their bloat.
• I wanted to learn about graph algorithms and R’s low-level graphics packages.

What’s with the name?

Havel’s Ring is an item in Dark Souls that helps you deal with excessive burdens. (Plus, every permutation of “pkg”/“dep”/“graph” was taken.)

TODO

• more tests
  • properly handle cases with 0/1 deps, local packages, etc
• color edges by dependency type
• copy over ggplot version ✓
• highlight direct dependencies
• uniq_pkg_deps() function ✓
• eliminate my precious pipes so I don’t require R >= 4.1
• Fix missing arrows between base packages (e.g. currently there are arrows missing from methods → utils,stats)
  • This can be fixed by setting info_method = "tools"
