galisats

R-CMD-check

If you are looking at Jupiter through binoculars or a telescope and don’t know which moon is which, then use this package.

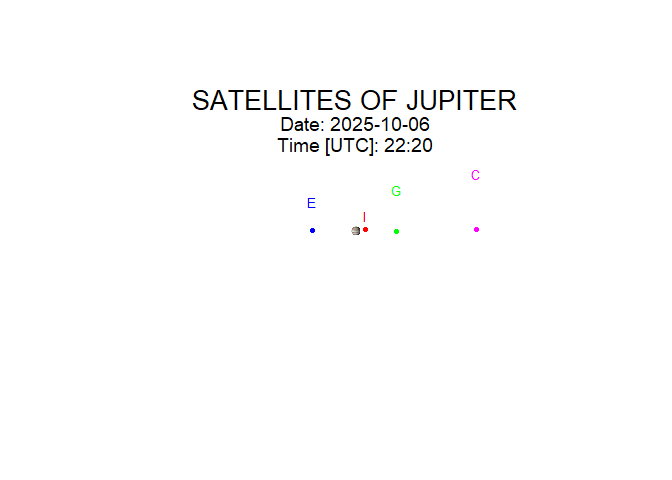

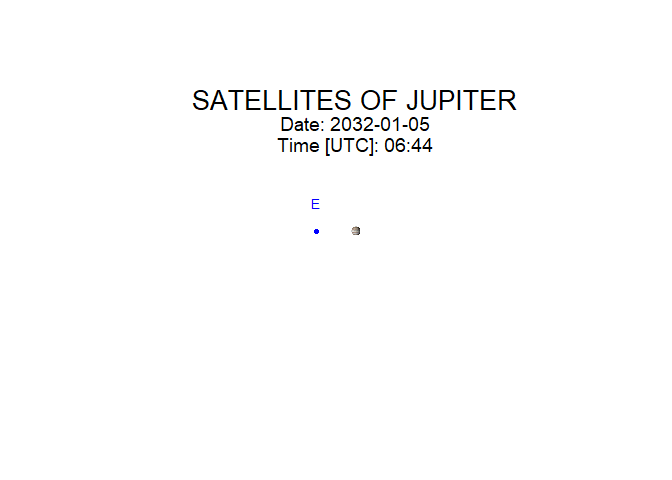

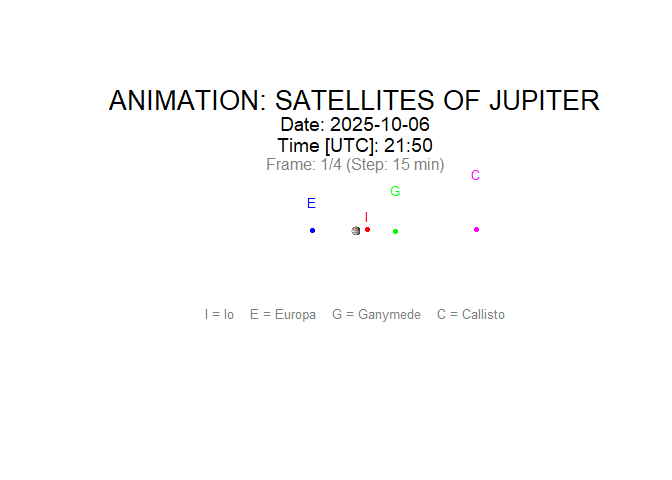

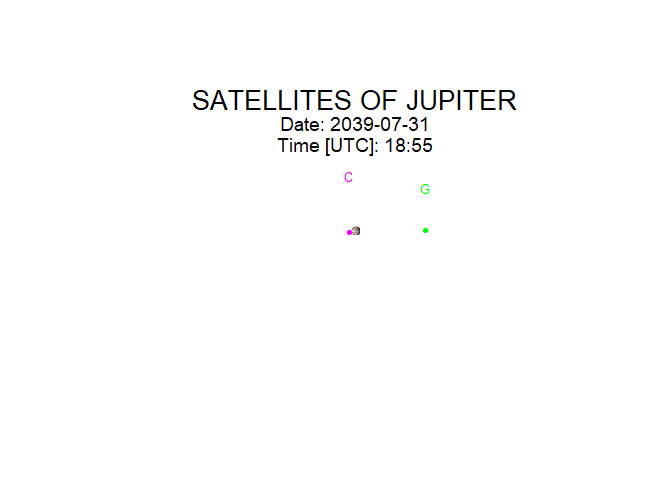

galisats is used to determine the positions of the four greatest satellites of Jupiter (called Galilean satellites). Positions are shown on the plot for any given time (ET – Ephemeris Time) with respect to the planet, as seen from the Earth.

The galsat() function calculates numerical values of the satellites’ positions:

x – the apparent rectangular coordinate of the satellite with respect to the center of Jupiter’s disk in the equatorial plane in the units of Jupiter’s equatorial radius; X is positive toward the west

y – the apparent rectangular coordinate of the satellite with respect to the center of Jupiter’s disk from the equatorial plane in the units of Jupiter’s equatorial radius; Y is positive toward the north

The function is based on algorithms in the book:

Astronomical Formulae for Calculators (4th edition), Jean Meeus, Willmann-Bell Inc., 1988

Installation

You can install the development version of galisats from [GitHub] (https://github.com/) with:

# install.packages("devtools")
devtools::install_github("LechJaszowski/galilean_satellites")

Example

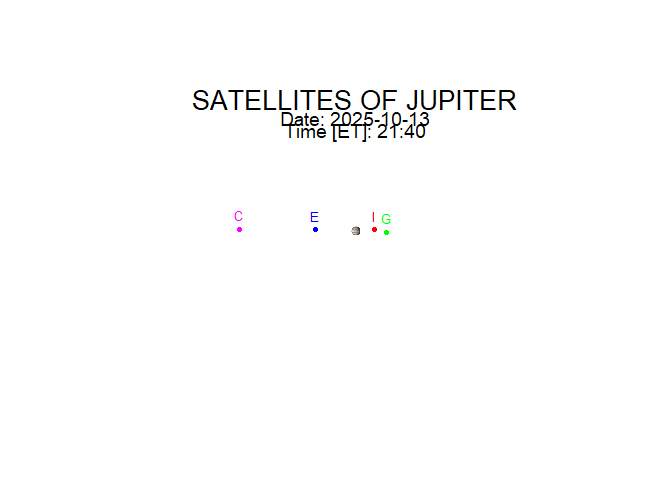

This is an example of using the function galsat():

library(galisats)
galsat(2025, 10, 13, 21, 40)
#> [1] "SATELLITES OF JUPITER"
#> [1] "Positions of the Galilean satellites."
#> Date: 13 - 10 - 2025
#> Time [ET]: 21 : 40
#> [1] "x: West(+), East(-)"
#> Io        4.1
#> Europa    -8.413
#> Ganymede  6.636
#> Callisto  -24.733
#> [1] "y: North(+), South(-)"
#> Io        0.112
#> Europa    0.108
#> Ganymede  -0.352
#> Callisto  0.254

#>       moon          x          y
#> 1       Io   4.099974  0.1122642
#> 2   Europa  -8.412734  0.1083234
#> 3 Ganymede   6.636258 -0.3519694
#> 4 Callisto -24.733044  0.2537935

These binaries (installable software) and packages are in development.
They may not be fully stable and should be used with caution. We make no claims about them.
