Generate planar and spherical triangle meshes, compute finite element
calculations for 1- and 2-dimensional flat and curved manifolds with
associated basis function spaces, methods for lines and polygons, and
transparent handling of coordinate reference systems and coordinate
transformation, including ‘sf’ and ‘sp’ geometries. The core ‘fmesher’
library code was originally part of the INLA
package, and also
distributed in the EUSTACE Horizon
2020 project, and implements parts of “Triangulations and
Applications” by Hjelle
and Dæhlen (2006). The expanded crs/CRS support started as an add-on
feature of inlabru
.
You can install the current CRAN version of
fmesher
:
install.packages("fmesher")
You can install the latest stable release of fmesher
from GitHub:
# install.packages("remotes")
::install_github("inlabru-org/fmesher", ref = "stable") remotes
And the development version with:
# install.packages("remotes")
::install_github("inlabru-org/fmesher") remotes
or track the development version builds via inlabru-org.r-universe.dev:
# Enable universe(s) by inlabru-org
options(repos = c(
inlabruorg = "https://inlabru-org.r-universe.dev",
INLA = "https://inla.r-inla-download.org/R/testing",
CRAN = "https://cloud.r-project.org"
))
install.packages("fmesher")
To install and run fmesher
in full debug mode (this is
quite an experience!), use
# install.packages("pkgbuild")
source("https://raw.githubusercontent.com/inlabru-org/fmesher/devel/misc/build.R")
fmesher_install(repo = "inlabru-org/fmesher", debug = TRUE)
https://inlabru-org.github.io/fmesher/
Includes a port of inla mesh inla.mesh.create
(as
fm_rcdt_2d_inla()
) and inla.mesh.2d
interfaces.
suppressPackageStartupMessages(library(fmesher))
suppressPackageStartupMessages(library(ggplot2))

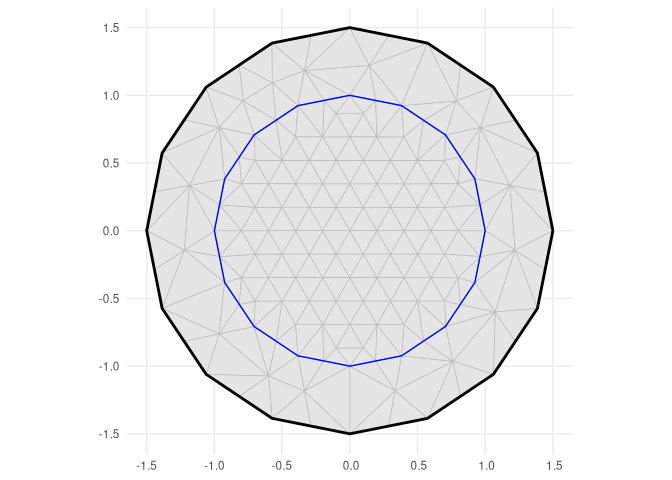

<- fm_mesh_2d_inla(
(mesh boundary = fm_extensions(cbind(0, 0), convex = c(1, 1.5)),
max.edge = c(0.5, 1)
))#> fm_mesh_2d object:
#> Manifold: R2
#> V / E / T: 57 / 152 / 96
#> Euler char.: 1
#> Constraints: 16 boundary edges (1 group: 1), 16 interior edges (1 group: 1)
#> Bounding box: (-1.499887, 1.499887) x (-1.499887, 1.499887)
#> Basis d.o.f.: 57
ggplot() +
geom_fm(data = mesh) +
theme_minimal()
<- fm_mesh_1d(c(1, 2, 3, 4, 6),
(mesh boundary = c("neumann", "free"),
degree = 2
))#> fm_mesh_1d object:
#> Manifold: R1
#> #{knots}: 5
#> Interval: (1, 6)
#> Boundary: (neumann, free)
#> B-spline degree: 2
#> Basis d.o.f.: 5
ggplot() +
geom_fm(data = mesh, xlim = c(0, 7))
The package provides methods fm_crs()
and
fm_CRS()
for extracting CRS information from
sf
and sp
objects and automatically converts
to the desired output format. The fm_transform()
wrapper
similarly handles a variety of objects, as well as special handling for
converting between spheres and globes of different radii, e.g. used to
map between the Earth and a unit radius sphere uses as a model of the
Earth.
# longlat for a spherical version of the Earth
print(fm_crs("longlat_globe"))
#> Coordinate Reference System:
#> User input: +proj=longlat +ellps=sphere +no_defs
#> wkt:
#> GEOGCRS["unknown",
#> DATUM["Unknown based on Normal Sphere (r=6370997) ellipsoid",
#> ELLIPSOID["Normal Sphere (r=6370997)",6370997,0,
#> LENGTHUNIT["metre",1,
#> ID["EPSG",9001]]]],
#> PRIMEM["Greenwich",0,
#> ANGLEUNIT["degree",0.0174532925199433],
#> ID["EPSG",8901]],
#> CS[ellipsoidal,2],
#> AXIS["longitude",east,
#> ORDER[1],
#> ANGLEUNIT["degree",0.0174532925199433,
#> ID["EPSG",9122]]],
#> AXIS["latitude",north,
#> ORDER[2],
#> ANGLEUNIT["degree",0.0174532925199433,
#> ID["EPSG",9122]]]]
# longlat for a sphere of radius 1m
print(fm_crs("longlat_norm"))
#> Coordinate Reference System:
#> User input: +proj=longlat +R=1 +no_defs
#> wkt:
#> GEOGCRS["unknown",
#> DATUM["unknown",
#> ELLIPSOID["unknown",1,0,
#> LENGTHUNIT["metre",1,
#> ID["EPSG",9001]]]],
#> PRIMEM["Reference meridian",0,
#> ANGLEUNIT["degree",0.0174532925199433,
#> ID["EPSG",9122]]],
#> CS[ellipsoidal,2],
#> AXIS["longitude",east,
#> ORDER[1],
#> ANGLEUNIT["degree",0.0174532925199433,
#> ID["EPSG",9122]]],
#> AXIS["latitude",north,
#> ORDER[2],
#> ANGLEUNIT["degree",0.0174532925199433,
#> ID["EPSG",9122]]]]
# A sphere of radius 1m
print(fm_crs("sphere"))
#> Coordinate Reference System:
#> User input: +proj=geocent +R=1 +units=m +no_defs
#> wkt:
#> GEODCRS["unknown",
#> DATUM["unknown",
#> ELLIPSOID["unknown",1,0,
#> LENGTHUNIT["metre",1,
#> ID["EPSG",9001]]]],
#> PRIMEM["Reference meridian",0,
#> ANGLEUNIT["degree",0.0174532925199433,
#> ID["EPSG",9122]]],
#> CS[Cartesian,3],
#> AXIS["(X)",geocentricX,
#> ORDER[1],
#> LENGTHUNIT["metre",1,
#> ID["EPSG",9001]]],
#> AXIS["(Y)",geocentricY,
#> ORDER[2],
#> LENGTHUNIT["metre",1,
#> ID["EPSG",9001]]],
#> AXIS["(Z)",geocentricZ,
#> ORDER[3],
#> LENGTHUNIT["metre",1,
#> ID["EPSG",9001]]]]
