deepSTRAPP

The R package deepSTRAPP employs time-calibrated phylogenies and trait data to test for differences in diversification rates between traits over evolutionary time. It works with continuous, categorical, and biogeographic trait data and extends the STRAPP test from [BAMMtools::traitDependentBAMM()] to any time step along phylogenies.

:dart: Summary

deepSTRAPP provides a powerful analytic framework to investigate the Diversification Rate Hypothesis (DRH) in the context of Historical Biogeography. DRH posits that current heterogeneity in diversity patterns such as the Latitudinal Diversity Gradient are mostly due to differences in diversification rates across bioregions. This hypothesis is typically assessed by comparing diversification rates across tips between the different bioregions with for example a STRAPP test (Rabosky & Huang, 2016). However, such tests only compare current rates of diversification that may not be informative about the long-term past dynamics shaping present-day biodiversity. deepSTRAPP overcomes this methodological gap: it enables to test the DRH by comparing diversification rates at any time step along evolutionary time. As a typical outcome, it allows researchers to identify time-frame of significance during which diversification rates were different across trait values, providing a quantitative testing framework to disentangle effects of past and current dynamics in explaining current patterns of biodiversity.

Beyond the biogeographic context, deepSTRAPP can be used to test for an evolutionary relationship between phenotypic evolution and diversification dynamics for any type of traits. It provides an alternative approach to state-dependent speciation and extinction (SSE) models that intend to model altogether trait evolution and diversification dynamics, but are often time-consuming and hard to parametrize, especially on large time-calibrated phylogenies. Thus, deepSTRAPP offers a flexible solution that can be applied to phylogenies encompassing thousands of lineages (Doré al., 2025).

deepSTRAPP is especially suited for large phylogenies as the power of the statistical tests is limited by the number of diversification regime shifts detected on the phylogeny and used to perform permutation tests. Each macroevolutionary regime acts as an independent event used to test for differences, therefore the sample size of the tests is conditioned by the number of macroevolutionary regimes identified. It is unlikely to detect any significant differences with few regime shifts.

A full deepSTRAPP workflow runs as follows:

• Step 1: Map trait evolution
• Step 2: Infer diversification dynamics (typically with BAMM)
• Step 3: Run deepSTRAPP
• Step 3.1: Extract traits values, diversification rates, and regimes at a given time in the past
• Step 3.2: Run a STRAPP test
• Step 3.3: Repeat steps 3.1 & 3.2 for many time steps along evolution time
• Step 4: Summarize tests results

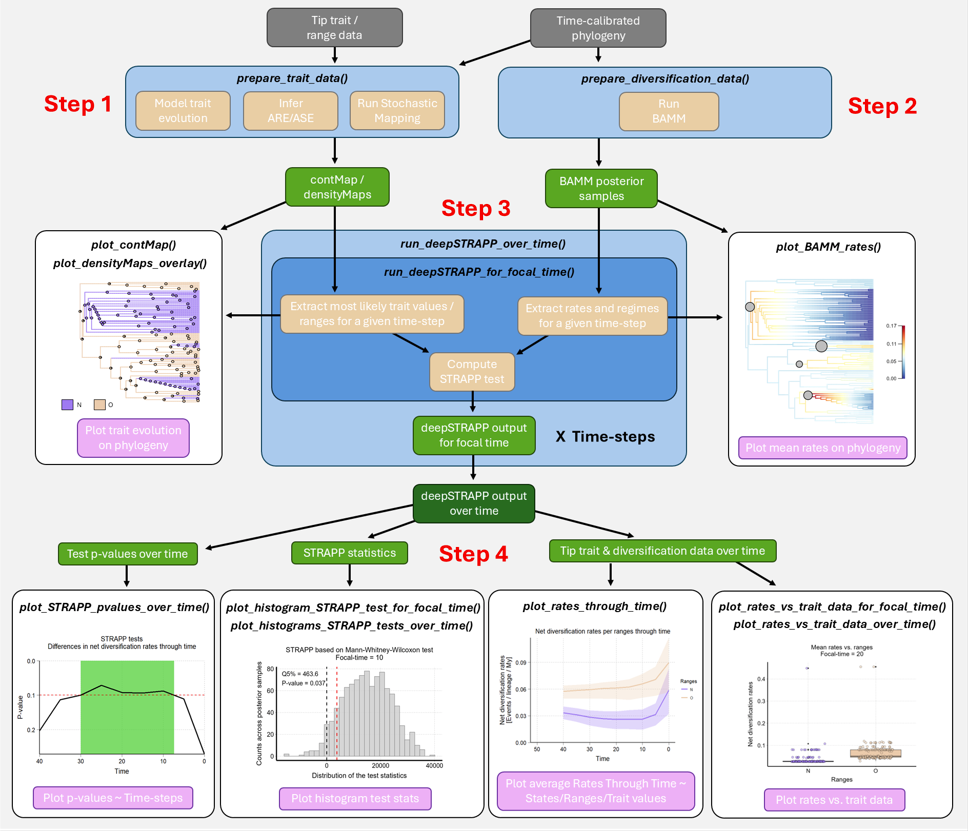

Figure 1: Simplified deepSTRAPP workflow showing the main functions (in italics) involved in each step. Input data in grey. Data processing in blue (main) and beige (internal). Intermediate objects in green. Final outputs in pink.

References:

STRAPP test: Rabosky, D. L., & Huang, H. (2016). A robust semi-parametric test for detecting trait-dependent diversification. Systematic biology, 65(2), 181-193. https://doi.org/10.1093/sysbio/syv066.

deepSTRAPP application: Doré, M., Borowiec, M. L., Branstetter, M. G., Camacho, G. P., Fisher, B. L., Longino, J. T., Ward, P. S., Blaimer, B. B. (2025). Evolutionary history of ponerine ants highlights how the timing of dispersal events shapes modern biodiversity. Nature Communications, 16, 8297. https://doi.org/10.1038/s41467-025-63709-3

:envelope_with_arrow: Installation

deepSTRAPP works on R version 4.4 or more. Be sure to have an R version that is compatible.
See https://CRAN.R-project.org/.

From CRAN, for the latest release:

install.packages("deepSTRAPP")

From GitHub, for the current development version, including all example datasets:

library(devtools)
remotes::install_github(repo = "MaelDore/deepSTRAPP")

You may need additional tools for package compilation such as Rtools (Windows) and Xcode (Mac OS).
See this page for details.

:link: Dependencies

deepSTRAPP relies on other software and R packages to perform some of its core tasks. R package dependencies will automatically be downloaded and installed alongside deepSTRAPP. However, R packages that are not currently available on CRAN, and external software may need to be installed independently.

• The R package BioGeoBEARS is used to infer ancestral ranges on time-calibrated phylogenies. It is needed by deepSTRAPP to perform the tests based on biogeographic ranges. You can install the latest version of BioGeoBEARS from its author’s repository on GitHub:

library(devtools)
devtools::install_github(repo="nmatzke/BioGeoBEARS")

For more information, please refer to the official BioGeoBEARS Wiki.

Reference:

Matzke, Nicholas J. (2018). BioGeoBEARS: BioGeography with Bayesian (and likelihood) Evolutionary Analysis with R Scripts. version 1.1.1, published on GitHub on November 6, 2018. DOI: http://dx.doi.org/10.5281/zenodo.1478250

• The C++ software BAMM is used to model diversification dynamics on time-calibrated phylogenies. It is needed by deepSTRAPP to obtain estimates of diversification rates along branches. You can install the latest version of BAMM from its official website. You will later need to provide to deepSTRAPP the path to your BAMM installation folder as an argument to the dedicated function [prepare_diversification_data()], so it can call BAMM within R to perform its tasks.

Reference:

Rabosky, DL. Automatic detection of key innovations, rate shifts, and diversity-dependence on phylogenetic trees. PLoS One 9, e89543 (2014). DOI: https://doi.org/10.1371/journal.pone.0089543

:desktop_computer: Website

A companion website is available to browse interactively the different tutorials and functions of deepSTRAPP at this URL: https://maeldore.github.io/deepSTRAPP/.

An overview of all functions and datasets is available here.

:joystick: Quick-to-run example

A simple use-case that shows how deepSTRAPP can be used to test for differences in diversification rates between two trait states along evolutionary times is available here and within R: vignette("main_tutorial").

This tutorial presents the main functions in a typical deepSTRAPP workflow.
For more advanced used, please refer to the vignettes/tutorials below.

:scroll: Advanced uses / tutorials

Tutorials are available to explore more advanced usages of deepSTRAPP. They provide explanations on available arguments and interpretations of results of deepSTRAPP across multiple types of data. They are listed below, in the companion website, and in this vignette: vignette("deepSTRAPP").

1/ Full deepSTRAPP workflows on different types of data

• 1.1/ Full deepSTRAPP workflow for continuous trait data: vignette("deepSTRAPP_continuous_data").
• 1.2/ Full deepSTRAPP workflow for categorical trait data with 3-levels: vignette("deepSTRAPP_categorical_data").
• 1.3/ Full deepSTRAPP workflow for biogeographic range data: vignette("deepSTRAPP_biogeographic_data").

2/ Explore options for trait evolution

• 2.1/ Model evolution of continuous trait data: vignette("model_continuous_trait_evolution").
• 2.2/ Model evolution of categorical trait data: vignette("model_categorical_trait_evolution").
• 2.3/ Model evolution of biogeographic range data: vignette("model_biogeographic_range_evolution").

3/ Explore options for BAMM

• Model diversification dynamics with BAMM within deepSTRAPP: vignette("model_diversification_dynamics").

4/ Explore the STRAPP test options

• Test difference hypotheses: vignette("explore_STRAPP_test_types").

  • Type of STRAPP tests: two-tailed vs. one-tailed.
  • Continuous: “negative” or “positive” correlation.
  • Binary with hypothesis: (A > B) vs. (B > A).
  • Multinominal: Hypotheses for all post hoc tests.

5/ Plot rates through time (RTT)

• Explore options for plotting diversification rates through time in relation to trait data: vignette("plot_rates_through_time").

6/ Cut phylogenies

• Cut different types of (mapped) phylogenies for a given focal-time: vignette("cut_phylogenies").

  • time-calibrated phylogenies.
  • contMap for continuous traits.
  • densityMap for categorical and biogeographic traits.
  • BAMM_object for diversification dynamics.

Alternatively, if you prefer to view the vignettes in R, you can install the package with build_vignettes = TRUE. But be aware that some vignettes can be slow to generate.

remotes::install_github(repo = "MaelDore/deepSTRAPP",
                        dependencies = TRUE,
                        upgrade = "ask",
                        # Time-consuming, but needed if you want to have access to the vignettes/tutorials
                        build_vignettes = TRUE)

# Access vignettes within R
vignette("deepSTRAPP")

# You can also use this to open access to all local vignettes in an HTML Brower
utils::browseVignettes(package = "deepSTRAPP")

:bug: Found a bug?

Thank you for finding it! Head over to the GitHub Issues tab and let me know about it.
You can also send me an e-mail.

:black_nib: How to cite deepSTRAPP

For any use of deepSTRAPP:

Doré, M., & Blaimer, B. B., deepSTRAPP: Testing for differences in diversification rates over deep evolutionary time. (DOI TBA)

As deepSTRAPP relies strongly on functions designed for the phytools R package, it is good practice to also cite this package:

Revell, L. J. (2024) phytools 2.0: an updated R ecosystem for phylogenetic comparative methods (and other things). PeerJ, 12, e16505. https://doi.org/10.7717/peerj.16505.

If you use the modeling tools for trait evolution embedded in the function prepare_trait_data(), you should cite the R package geiger:

Pennell, M.W., J.M. Eastman, G.J. Slater, J.W. Brown, J.C. Uyeda, R.G. FitzJohn, M.E. Alfaro, and L.J. Harmon. 2014. geiger v2.0: an expanded suite of methods for fitting macroevolutionary models to phylogenetic trees. Bioinformatics 30:2216-2218. https://doi.org/10.1093/bioinformatics/btu181.

If you use the modeling tools for historical biogeography embedded in the function prepare_trait_data(), you should cite the R package BioGeoBEARS:

Matzke, N. J. (2013). Probabilistic historical biogeography: new models for founder-event speciation, imperfect detection, and fossils allow improved accuracy and model-testing. Frontiers of Biogeography, 5(4). https://doi.org/10.21425/F5FBG19694.
