PepMapViz: A Versatile Toolkit for Peptide Mapping, Visualization, and Comparative Exploration ================

PepMapViz

PepMapViz is a versatile R visualization package that empowers researchers with comprehensive visualization tools for seamlessly mapping peptides to protein sequences, identifying distinct domains and regions of interest, accentuating mutations, and highlighting post-translational modifications, all while enabling comparisons across diverse experimental conditions. Potential applications of PepMapViz include the visualization of cross-software mass spectrometry results at the peptide level for specific protein and domain details in a linearized format and post-translational modification coverage across different experimental conditions; unraveling insights into disease mechanisms. It also enables visualization of MHC-presented peptide clusters in different antibody regions predicting immunogenicity in antibody drug development.

Installation

You can install the development version of PepMapViz from GitHub using the devtools package.

# Install devtools if you haven't already
install.packages("devtools")

# Install PepMapViz from the package
devtools::build()
devtools::install()

Features

  1. Mapping peptides to protein sequences
  2. Identifying distinct domains and regions of interest
  3. Accentuating mutations
  4. Highlighting post-translational modifications
  5. Enabling comparisons across diverse experimental conditions

Usage

This is a basic example which shows you how to solve a common problem:

library(PepMapViz)

# Read all files from a folder
folder_path <- system.file("extdata", package = "PepMapViz")
resulting_df <- combine_files_from_folder(folder_path)

# Strip the sequence
striped_data_peaks <- strip_sequence(resulting_df, "Peptide", "Sequence", "PEAKS")

# Extract modifications information
PTM_table <- data.frame(PTM_mass = c("15.99", ".98", "57.02"),
                        PTM_type = c("Ox", "Deamid", "Cam"))
converted_data_peaks <- obtain_mod(
  striped_data_peaks,
  "Peptide",
  "PEAKS",
  strip_seq_col = NULL,
  PTM_table,
  PTM_annotation = TRUE,
  PTM_mass_column = "PTM_mass"
)

# Match peptide sequence with provided sequence and calculate positions
whole_seq <- data.frame(
  Epitope = c("Boco", "Boco"),
  Chain = c("HC", "LC"),
  Region_Sequence = c("QVQLVQSGAEVKKPGASVKVSCKASGYTFTSYYMHWVRQAPGQGLEWMGEISPFGGRTNYNEKFKSRVTMTRDTSTSTVYMELSSLRSEDTAVYYCARERPLYASDLWGQGTTVTVSSASTKGPSVFPLAPCSRSTSESTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSNFGTQTYTCNVDHKPSNTKVDKTVERKCCVECPPCPAPPVAGPSVFLFPPKPKDTLMISRTPEVTCVVVDVSHEDPEVQFNWYVDGVEVHNAKTKPREEQFNSTFRVVSVLTVVHQDWLNGKEYKCKVSNKGLPSSIEKTISKTKGQPREPQVYTLPPSREEMTKNQVSLTCLVKGFYPSDIAVEWESNGQPENNYKTTPPMLDSDGSFFLYSKLTVDKSRWQQGNVFSCSVMHEALHNHYTQKSLSLSPGK",
                      "DIQMTQSPSSLSASVGDRVTITCRASQGISSALAWYQQKPGKAPKLLIYSASYRYTGVPSRFSGSGSGTDFTFTISSLQPEDIATYYCQQRYSLWRTFGQGTKLEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC"
  )
)
matching_result <- match_and_calculate_positions(
  converted_data_peaks,
  'Sequence',
  whole_seq,
  match_columns = NULL,
  sequence_length = c(10, 30),
  column_keep = c(
    "PTM_mass",
    "PTM_position",
    "reps",
    "Area",
    "Donor",
    "PTM_type"
  )
)

# Quantify matched peptide sequences by PSM
matching_columns = c("Chain", "Epitope")
distinct_columns = c("Donor")
data_with_psm <- peptide_quantification(
  whole_seq,
  matching_result,
  matching_columns,
  distinct_columns,
  quantify_method = "PSM",
  with_PTM = TRUE,
  reps = TRUE
)
region <- data.frame(
  Epitope = c("Boco", "Boco", "Boco", "Boco", "Boco", "Boco"),
  Chain = c("HC", "HC", "HC", "HC", "LC", "LC"),
  Region = c("VH", "CH1", "CH2", "CH3", "VL", "CL"),
  Region_start = c(1,119,229,338,1,108),
  Region_end = c(118,228,337,444,107,214)
)
result_with_psm <- data.frame()
for (i in 1:nrow(region)) {
  chain <- region$Chain[i]
  region_start <- region$Region_start[i]
  region_end <- region$Region_end[i]
  region_name <- region$Region[i]

  temp <- data_with_psm[data_with_psm$Chain == chain &
                          data_with_psm$Position >= region_start &
                          data_with_psm$Position <= region_end, ]
  temp$Region <- region_name

  result_with_psm <- rbind(result_with_psm, temp)
}

head(result_with_psm)
##   Character Position Chain Epitope PSM Donor   PTM PTM_type Region
## 1         Q        1    HC    Boco   0    D1 FALSE     <NA>     VH
## 2         V        2    HC    Boco   0    D1 FALSE     <NA>     VH
## 3         Q        3    HC    Boco   0    D1 FALSE     <NA>     VH
## 4         L        4    HC    Boco   0    D1 FALSE     <NA>     VH
## 5         V        5    HC    Boco   0    D1 FALSE     <NA>     VH
## 6         Q        6    HC    Boco   0    D1 FALSE     <NA>     VH

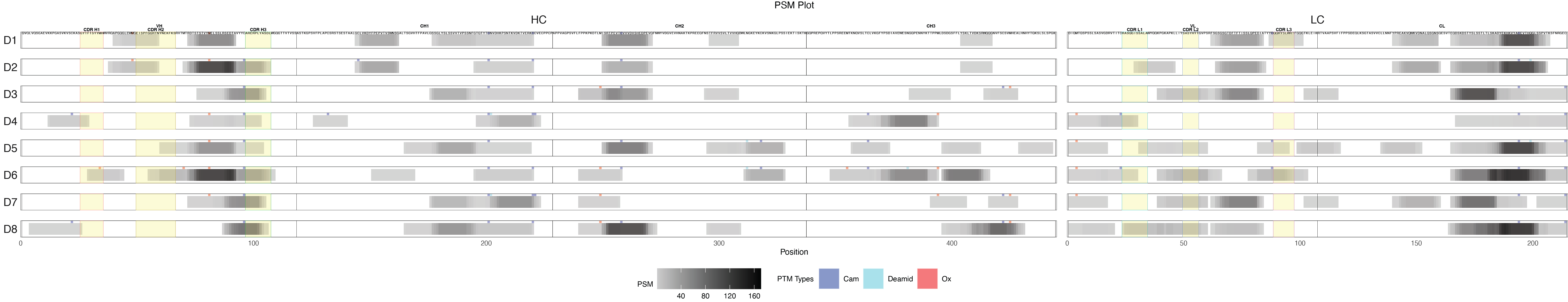

# Plotting peptide in whole provided sequence
domain <- data.frame(
  domain_type = c("CDR H1", "CDR H2", "CDR H3", "CDR L1", "CDR L2", "CDR L3"),
  Region = c("VH", "VH", "VH",  "VL", "VL", "VL"),
  Epitope = c("Boco", "Boco", "Boco", "Boco", "Boco", "Boco"),
  domain_start = c(26, 50, 97,  24, 50, 89),
  domain_end = c(35, 66, 107,  34, 56, 97)
)
x_axis_vars <- c("Region")
y_axis_vars <- c("Donor")
column_order <- list(
    Donor = "D1,D2,D3,D4,D5,D6,D7,D8",
    Region = "VH,CH1,CH2,CH3,VL,CL"
)
domain_color <- c(
"CDR H1" = "#F8766D",
"CDR H2" = "#B79F00",
"CDR H3" = "#00BA38",
"CDR L1" = "#00BFC4",
"CDR L2" = "#619CFF",
"CDR L3" = "#F564E3"
)
PTM_color <- c(
  "Ox" = "red",
  "Deamid" = "cyan",
  "Cam" = "blue",
  "Acetyl" = "magenta"
)
label_value = list(Donor = "D1")

p_psm <- create_peptide_plot(
  result_with_psm,
  y_axis_vars,
  x_axis_vars,
  y_expand = c(0.2, 0.2),
  x_expand = c(0.5, 0.5),
  theme_options = list(legend.box = "horizontal"),
  labs_options = list(title = "PSM Plot", x = "Position", fill = "PSM"),
  color_fill_column = 'PSM',
  fill_gradient_options = list(limits = c(0, 160)),  # Set the limits for the color scale
  label_size = 1.9,
  add_domain = TRUE,
  domain = domain,
  domain_start_column = "domain_start",
  domain_end_column = "domain_end",
  domain_type_column = "domain_type",
  domain_color = domain_color,
  PTM = TRUE,
  PTM_type_column = "PTM_type",
  PTM_color = PTM_color,
  add_label = TRUE,
  label_column = "Character",
  label_value = label_value,
  column_order = column_order
)

Getting Started

For a detailed guide on how to use PepMapViz, please refer to our vignette and docuemntation under inst/doc.

License

This project is licensed under the MIT License - see the LICENSE file for details.
