Stochastic metapopulation compartmental modeling of respiratory infectious diseases.
MetaRVM is an open-source R package for stochastic
metapopulation modeling of respiratory infectious diseases. It supports
multiple disease types and is designed for flexible stratification by
geography, demographics, or any user-defined grouping.
MetaRVM is built for real-time public health
decision-making.

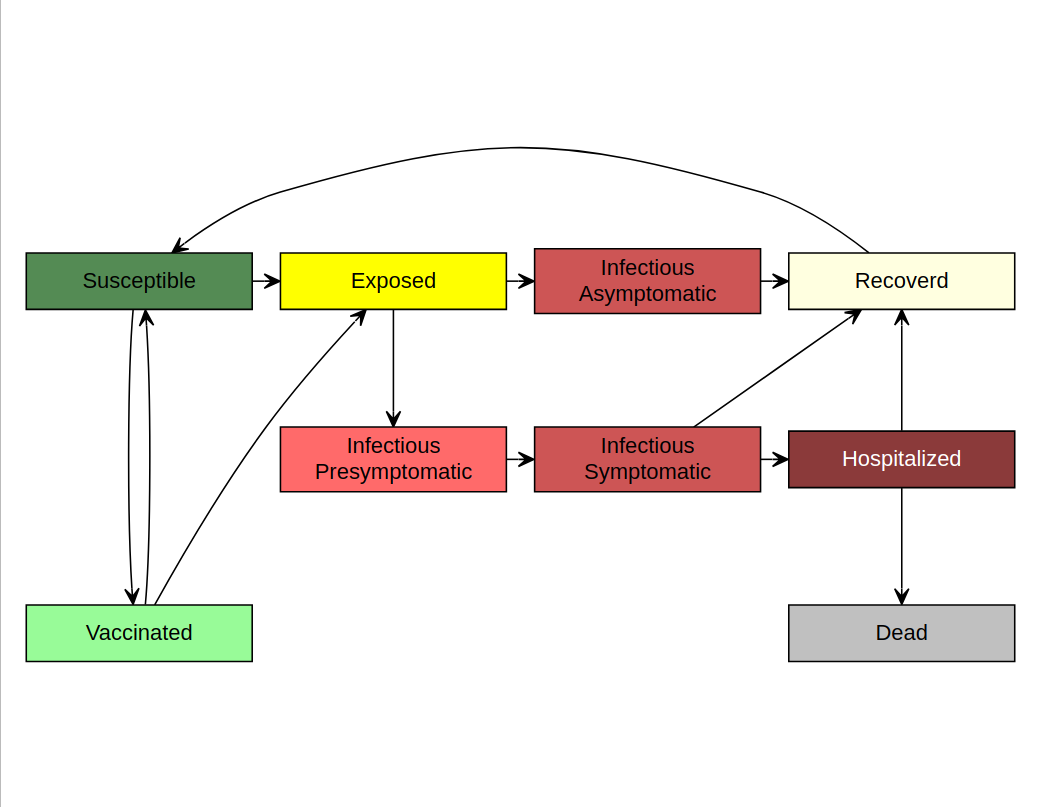

MetaRVM extends the classic SEIR framework with
disease-specific compartments, time-varying contact patterns, and
vaccination dynamics. Disease types currently supported:
flu (influenza-like illness) and
measles. Each disease has its own set of compartments,
parameters, and initialization structure, all declared through a disease
registry that keeps the core simulation engine disease-agnostic.
For more details, please refer to the paper: Developing and deploying a use-inspired metapopulation modeling framework for detailed tracking of stratified health outcomes
Full documentation is available at: https://RESUME-Epi.github.io/MetaRVM/
Install the current CRAN release with (see the CRAN badge above for the exact released version):
install.packages("MetaRVM")The development version (2.2.0) is available from GitHub:
# install.packages("remotes")
remotes::install_github("RESUME-Epi/MetaRVM")Configs can be supplied as a YAML file path or built programmatically
with build_config().
library(MetaRVM)
options(odin.verbose = FALSE)
## prepare the configuration file
cfg <- system.file("extdata", "example_config.yaml", package = "MetaRVM")The content of the yaml configuration file:
model:
disease: flu
run_id: ExampleRun
population_data:
initialization: population_init_n24.csv
vaccination: vaccination_n24.csv
mixing_matrix:
weekday_day: m_weekday_day.csv
weekday_night: m_weekday_night.csv
weekend_day: m_weekend_day.csv
weekend_night: m_weekend_night.csv
disease_params:
ts: 0.5
ve: 0.4
dv: 180
dp: 1
de: 3
da: 5
ds: 6
dh: 8
dr: 180
pea: 0.3
psr: 0.95
phr: 0.97
simulation_config:
start_date: 10/01/2023 # m/d/Y
length: 150
nsim: 1
nrep: 1
random_seed: 42# run simulation
sim_out <- metaRVM(cfg)
#> Loading required namespace: pkgbuild

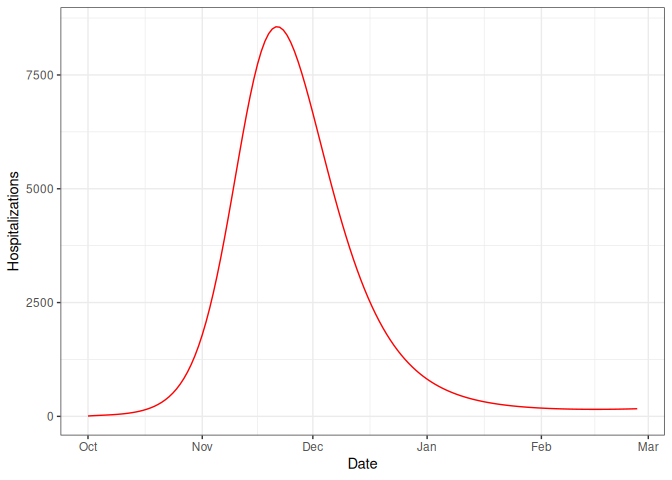

# basic plot: daily hospitalizations by date
library(ggplot2)
hosp <- sim_out$results[disease_state == "H"]
hosp_sum <- hosp[disease_state == "H", .(total = sum(value)), by = "date"]
ggplot(hosp_sum, aes(date, total)) +
geom_line(, color = "red") +
labs(y = "Hospitalizations", x = "Date") + theme_bw()
MetaRVM implements stratified metapopulation models
where each demographic subgroup has its own set of compartments and
disease progression. All simulations are stochastic.
Transmission is stratified by user-defined demographic groups (e.g.,
age, zone, race). Time-varying mixing matrices define how these strata
interact (daytime vs. nighttime, weekday vs. weekend), and
MetaRVM computes stratum-specific forces of infection.
Parameters can be specified as fixed scalars or drawn from distributions
(lognormal, gamma, uniform, beta, gaussian), enabling uncertainty
quantification across simulation runs.
For simulation control: - nsim sets the number of
parameter sets; when distributions are used, each draw is a row in
sampled parameter matrices - nrep sets the number of
stochastic replicates per parameter set - total runs =
nsim × nrep - random_seed ensures
reproducibility for both parameter sampling and stochastic
trajectories
MetaRVM is configured through a YAML file or the
build_config() programmatic builder — both accept the same
arguments. A small set of CSV inputs are required alongside the
config.
| Input | Required? | Description |
|---|---|---|
Population initialization (population_init.csv) |
Yes | Defines demographic strata with user-defined category columns (e.g., age, zone, race, income_level) and initial population states. Categories are automatically detected from column names. |
Mixing matrices (mixing_matrix_*.csv) |
Yes | Four contact matrices, consistent with the population strata. These typically represent weekday/weekend and day/night mixing patterns. |
Vaccination schedule (vaccination.csv) |
Flu only | Time-varying vaccination counts or rates by stratum, used to move
individuals from S to V. Measles instead uses
V10/V20 columns in the population CSV to seed
one- and two-dose vaccinated compartments — no separate file
needed. |
| Disease parameters | Yes | Scalar values or distribution specs (lognormal, gamma, etc.) for
each disease-specific parameter. Flu uses ts,
ve, dv, de, dp,
da, ds, dh, dr,
pea, psr, phr. Measles uses
beta, de1, de2, di1,
di2, prop_I1_Q, prop_I2_Q,
V1_eff, V2_eff. |
| Checkpoint files | Optional | Internal model state snapshots used to resume or branch simulations (e.g., for phased calibration). Supported for both flu and measles. |
MetaRVM produces simulation results in a unified
tidy long-format table that is easy to analyze with
data.table, dplyr, or ggplot2.
Every record corresponds to a single compartment count or flow quantity
for a specific demographic stratum, simulation date, and
scenario/instance.
The core output is available in:
sim$results — compartment counts and flows for each
daysim$config — the configuration object used to generate
the runMetaRVM includes several vignettes that demonstrate common workflows using real model configurations and data. These provide detailed, step-by-step examples of how to prepare inputs, configure the model, run simulations, and analyze outputs.
The vignettes can be accessed at:
https://resume-epi.github.io/MetaRVM/articles/
List of vignettes:
Getting Started
A gentle introduction showing how to load a configuration file, run a
simulation, and inspect outputs.
Model Configurations
A detailed walkthrough of the YAML structure, required fields, parameter
blocks, optional modules, and how to define population strata and mixing
patterns.
Running a Simulation with metaRVM Full example using a complete set of input files, showing how MetaRVM reads population initialization data, mixing matrices, and vaccination schedules. Includes flu and measles examples.
For the complete function reference, visit:
https://resume-epi.github.io/MetaRVM/reference/
