cnefetools: Tools for working with Brazilian CNEFE address data

{cnefetools} provides helper functions to efficiently work with the Brazilian National Address File for Statistical Purposes (Cadastro Nacional de Endereços para Fins Estatísticos, CNEFE), an address-level dataset released by the Brazilian Institute of Geography and Statistics (Instituto Brasileiro de Geografia e Estatística, IBGE).

Installation

Install the stable version from CRAN:

install.packages("cnefetools")

To install the development version from GitHub:

# install.packages("pak")
pak::pak("pedreirajr/cnefetools")

# or
# install.packages("remotes")
remotes::install_github("pedreirajr/cnefetools")

Overview

Reading CNEFE data

read_cnefe() downloads and reads the CNEFE CSV for a municipality, returning an Arrow table by default:

library(cnefetools)
library(dplyr)

# Read CNEFE data for Salvador as an Arrow table
tab_ssa <- read_cnefe(2927408, cache = TRUE)

tab_ssa |>
  collect() |> # materialize the arrow table in R
  tibble() |>
  head()
#> # A tibble: 6 × 34
#>   COD_UNICO_ENDERECO COD_UF COD_MUNICIPIO COD_DISTRITO COD_SUBDISTRITO COD_SETOR
#>                <int>  <int>         <int>        <int>         <int64> <chr>
#> 1          222386741     29       2927408    292740805     29274080518 29274080…
#> 2           27995350     29       2927408    292740805     29274080522 29274080…
#> 3           28034841     29       2927408    292740805     29274080522 29274080…
#> 4          217544957     29       2927408    292740805     29274080518 29274080…
#> 5          217639781     29       2927408    292740805     29274080526 29274080…
#> 6          217639701     29       2927408    292740805     29274080526 29274080…
#> # ℹ 28 more variables: NUM_QUADRA <int>, NUM_FACE <int>, CEP <int>,
#> #   DSC_LOCALIDADE <chr>, NOM_TIPO_SEGLOGR <chr>, NOM_TITULO_SEGLOGR <chr>,
#> #   NOM_SEGLOGR <chr>, NUM_ENDERECO <int>, DSC_MODIFICADOR <chr>,
#> #   NOM_COMP_ELEM1 <chr>, VAL_COMP_ELEM1 <chr>, NOM_COMP_ELEM2 <chr>,
#> #   VAL_COMP_ELEM2 <chr>, NOM_COMP_ELEM3 <chr>, VAL_COMP_ELEM3 <chr>,
#> #   NOM_COMP_ELEM4 <chr>, VAL_COMP_ELEM4 <chr>, NOM_COMP_ELEM5 <chr>,
#> #   VAL_COMP_ELEM5 <chr>, LATITUDE <dbl>, LONGITUDE <dbl>, …

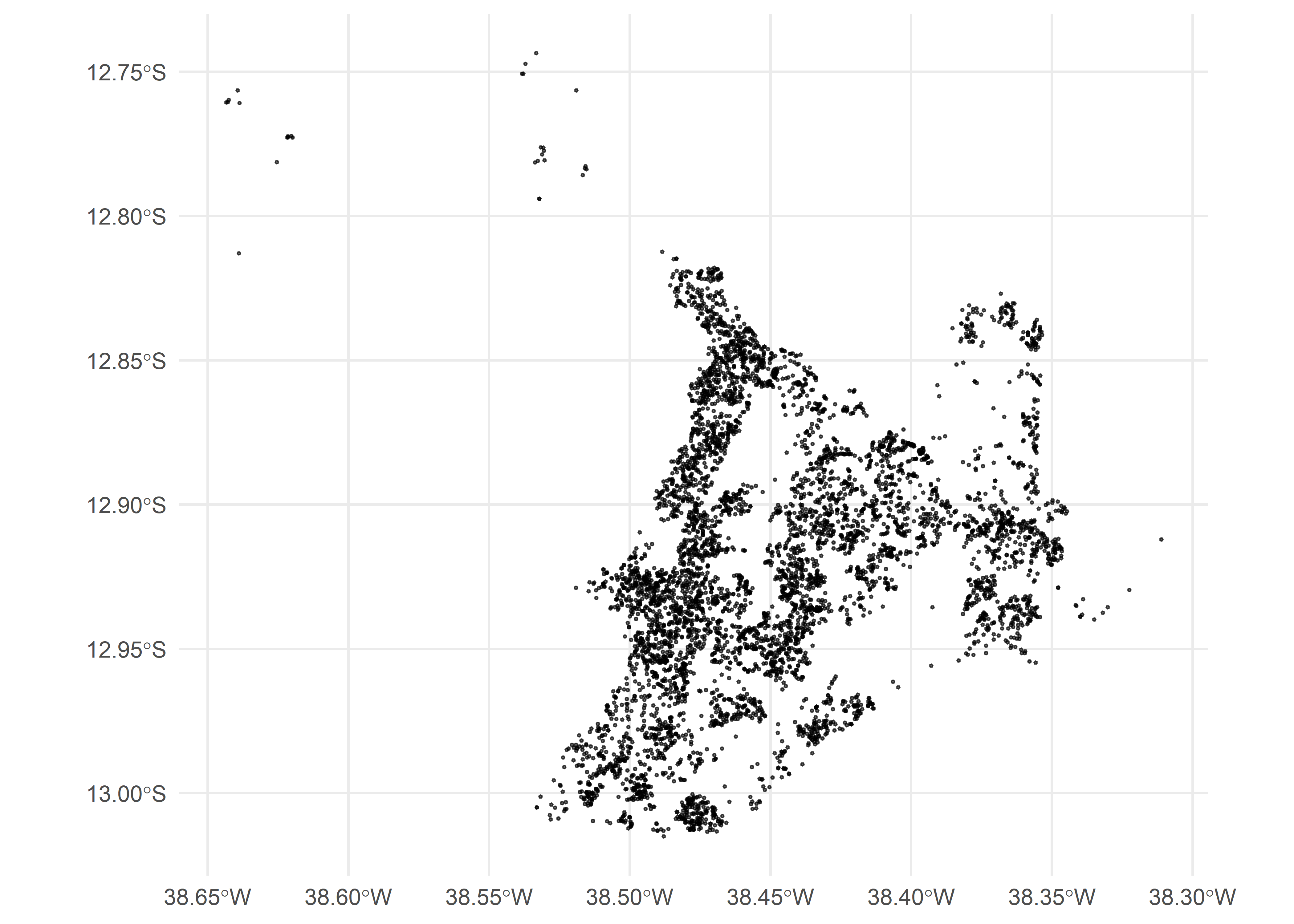

Setting output = "sf" returns an sf object instead. The example below reads data for Salvador, filters religious facilities (COD_ESPECIE == 8), and plots them:

library(sf)
library(ggplot2)

# Reading CNEFE data
tab_ssa_sf <- read_cnefe(
  code_muni = 2927408,
  output = "sf",
  cache = TRUE
  )

# Filtering religious establishments
temples_ssa <- tab_ssa_sf |>
  filter(COD_ESPECIE == 8)

# Ploting religious establishments points for Salvador
ggplot() +
  geom_sf(data = temples_ssa, size = 0.3, alpha = 0.6) +
  coord_sf() +
  theme_minimal()

Warning: For large municipalities, CNEFE may contain more than 1 million address points. Plotting all coordinates at once can be slow and memory-intensive, so consider filtering or sampling before creating maps.

Caching behavior

By default, cache = TRUE stores the downloaded ZIP file in a user-level cache directory specific to this package. If you prefer to avoid persistent caching, set:

tab_ssa <- read_cnefe(code_muni = 2927408, cache = FALSE)

In this case, the ZIP file is stored in a temporary location and removed after reading.

Accessing official CNEFE documentation

{cnefetools} includes local copies of the official methodological note and the variable dictionary for the 2022 CNEFE released by IBGE.

# Open the official methodological note (PDF)
cnefe_doc(year = 2022)

# Open the official variable dictionary (.xls spreadsheet)
cnefe_dictionary(year = 2022)

Counting addresses with cnefe_counts()

cnefe_counts() aggregates CNEFE address points into spatial units and returns an sf object with counts by address category (addr_type1 to addr_type8). Below is an example using H3 hexagons for São Paulo at resolution 9:

library(cnefetools)
library(sf)
library(ggplot2)

# Producing CNEFE counts
hex_sp <- cnefe_counts(
  code_muni = 3550308,
  h3_resolution = 9,
  verbose = TRUE
  )

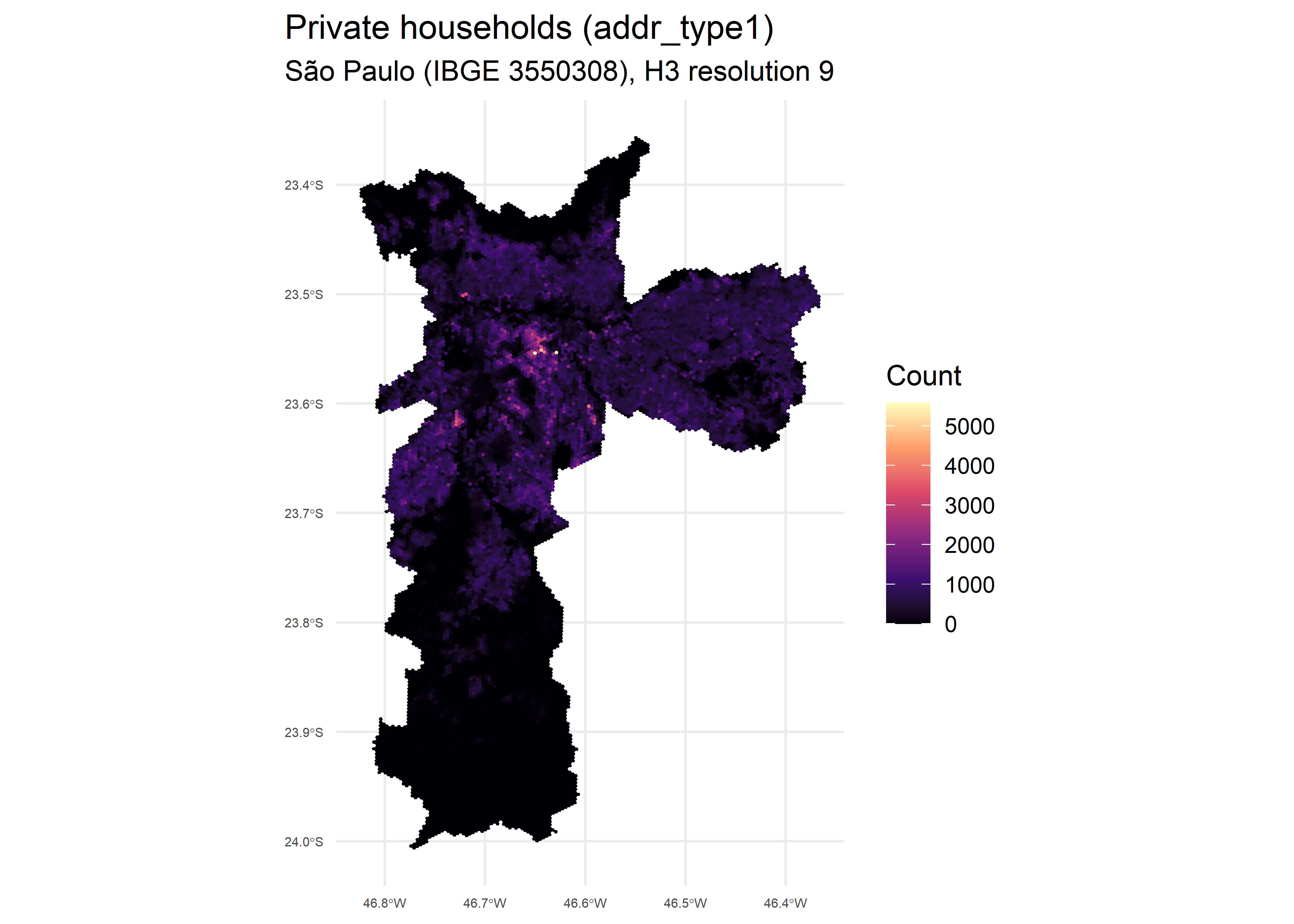

Below we plot the count of private households (addr_type1) per hexagon:

# Plotting private households (addr_type1) for São Paulo
ggplot(hex_sp) +
  geom_sf(aes(fill = addr_type1), color = NA) +
  scale_fill_viridis_c(option = "magma") +
  coord_sf() +
  labs(
    fill = "Count",
    title = "Private households (addr_type1)",
    subtitle = "São Paulo (IBGE 3550308), H3 resolution 9"
  ) +
  theme_minimal()+
  theme(
    plot.title.position = "plot",
    axis.text.x = element_text(size = 5),
    axis.text.y = element_text(size = 5)
  )

cnefe_counts() also supports polygon_type = "user" to aggregate counts to custom polygons instead of H3 hexagons. See the cnefe_counts article for details.

Land-use mix indices with compute_lumi()

compute_lumi() computes land-use mix indicators on spatial units for any municipality covered by the 2022 CNEFE dataset (Pedreira Junior et al., 2025). Available indicators include the Entropy Index (ei), the Herfindahl-Hirschman Index (hhi), the Balance Index (bal), the Index of Concentration at Extremes (ice), an adapted HHI (hhi_adp), and the Bidirectional Global-centered Balance Index (bgbi).

Below is an example for Fortaleza at H3 resolution 8:

library(cnefetools)
library(sf)
library(ggplot2)

# Computing land use mix indices
lumi_ftl <- compute_lumi(
  code_muni = 2304400,
  h3_resolution = 8,
  verbose = TRUE
  )

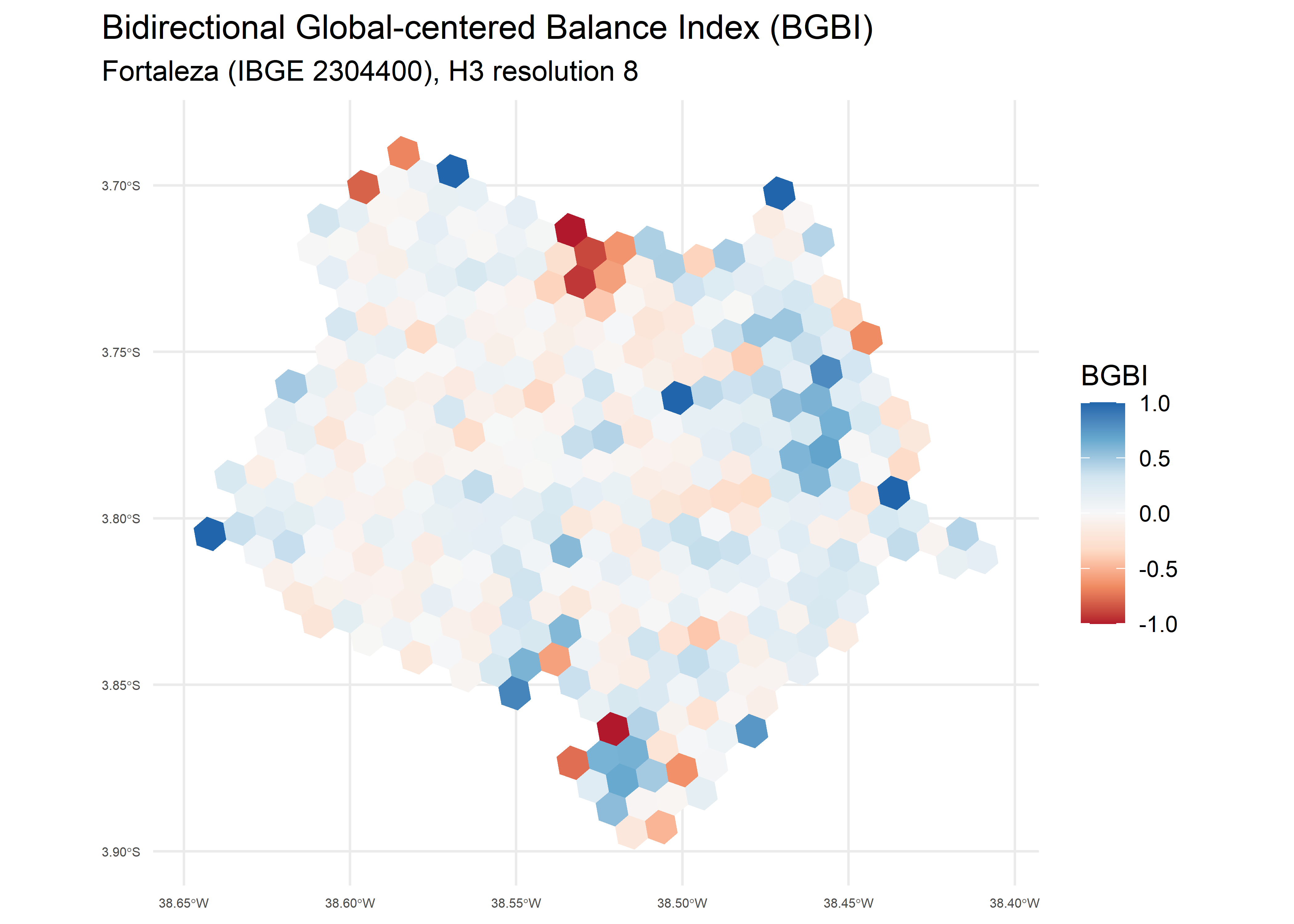

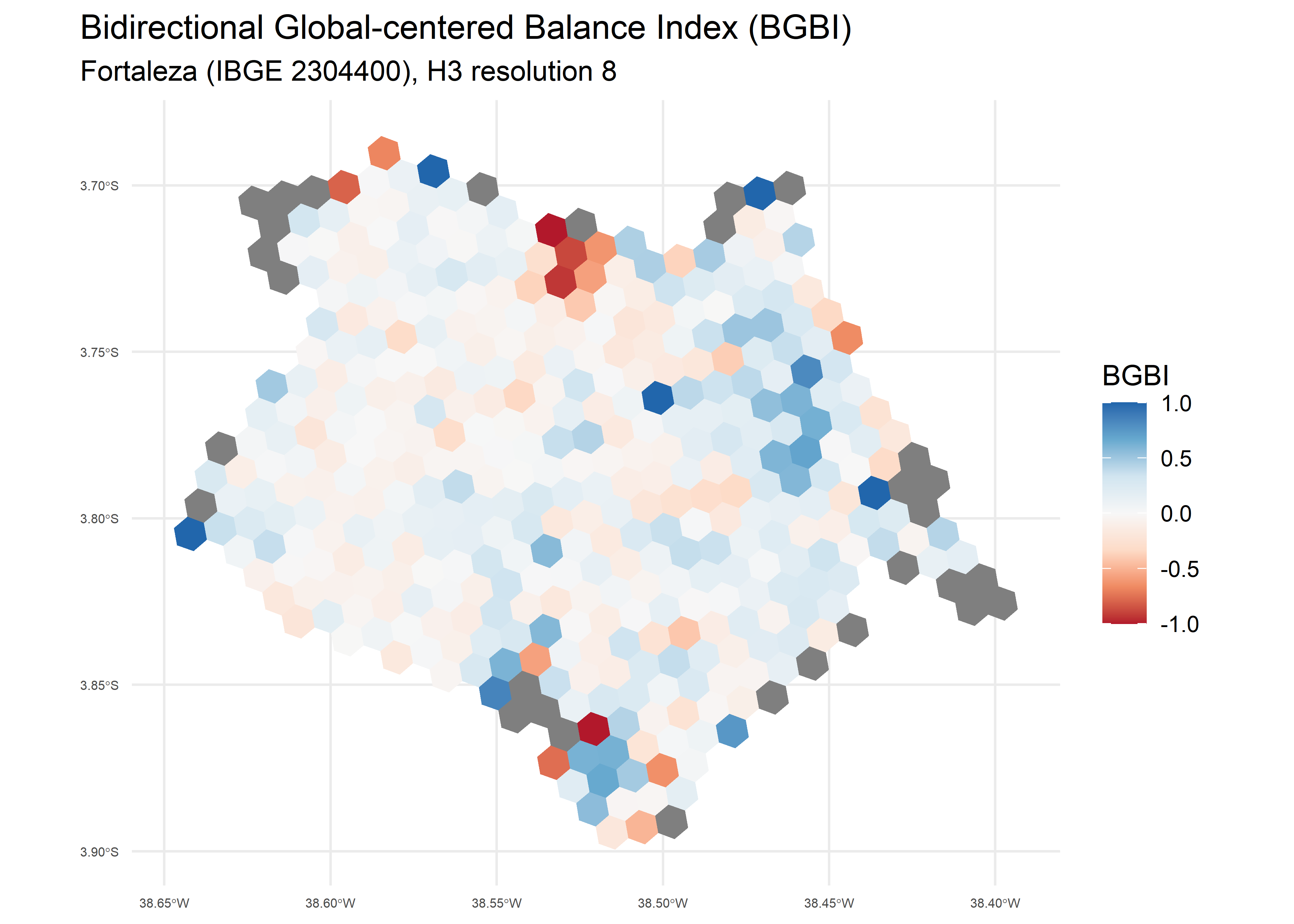

Below we plot the Bidirectional Global-centered Balance Index (BGBI), where positive values indicate residential dominance and negative values indicate non-residential dominance:

# Plotting the BGBI index
ggplot(lumi_ftl) +
  geom_sf(aes(fill = bgbi), color = NA) +
  scale_fill_distiller(
    type = "div",
    palette = "RdBu",
    direction = 1
  ) +
  coord_sf() +
  labs(
    fill = "BGBI",
    title = "Bidirectional Global-centered Balance Index (BGBI)",
    subtitle = "Fortaleza (IBGE 2304400), H3 resolution 8"
  ) +
  theme_minimal()+
  theme(
    plot.title.position = "plot",
    axis.text.x = element_text(size = 5),
    axis.text.y = element_text(size = 5)
  )

compute_lumi() also supports polygon_type = "user" to compute indices on custom polygons. See the compute_lumi article for details.

Dasymetric interpolation with tracts_to_h3()

tracts_to_h3() performs a dasymetric interpolation, considering two stages: first, census tract totals are allocated to individual CNEFE dwelling points inside each tract; then, the allocated values are aggregated to an H3 grid at the chosen resolution. This leverages the fine-grained spatial distribution of addresses in CNEFE to produce more realistic sub-tract estimates than simple areal weighting.

library(cnefetools)
library(ggplot2)

# Performing dasymetric interpolation
rec_hex <- tracts_to_h3(
  code_muni = 2611606,
  h3_resolution = 9,
  vars = c("pop_ph", "avg_inc_resp"),
  cache = TRUE,
  verbose = TRUE
)

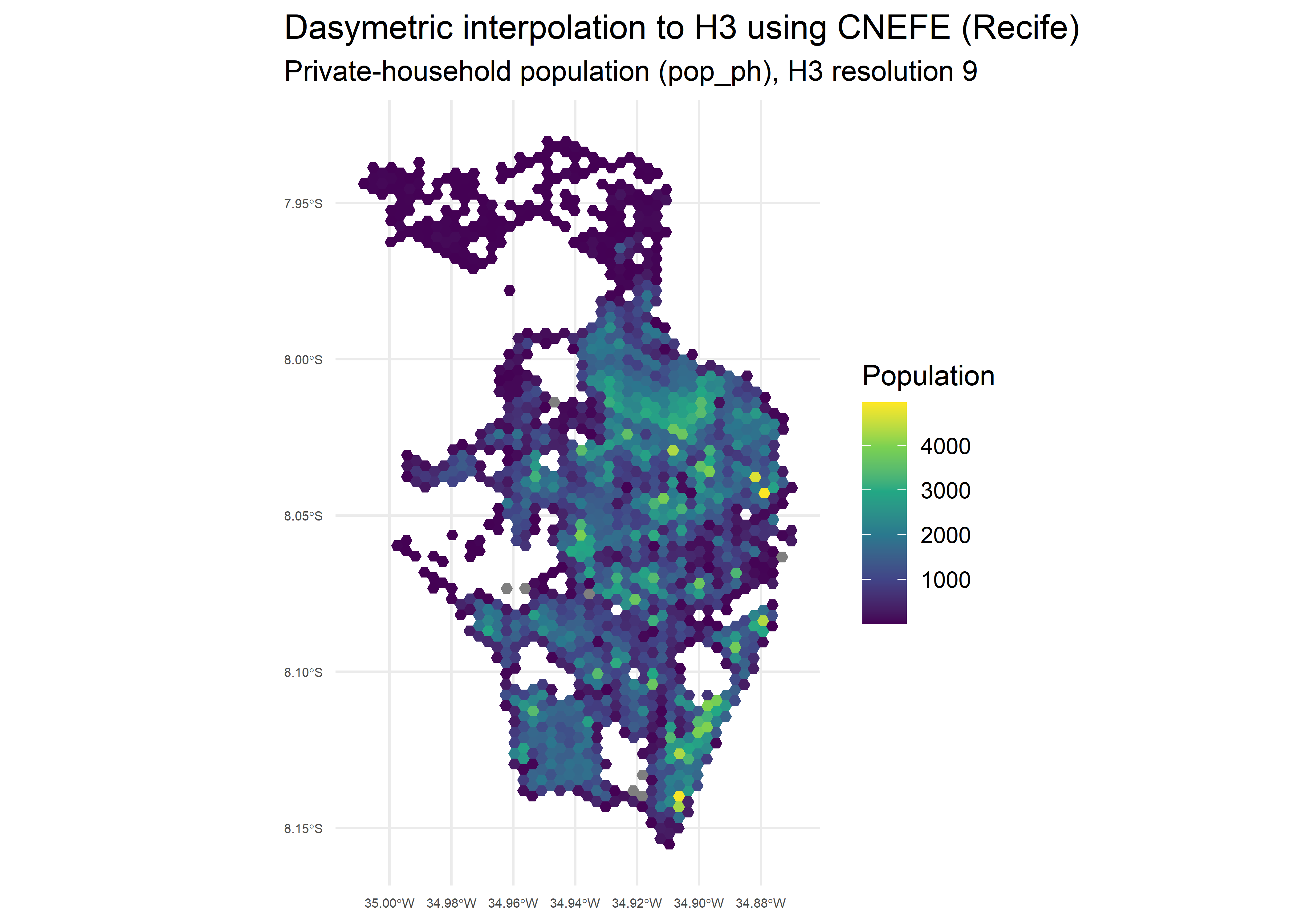

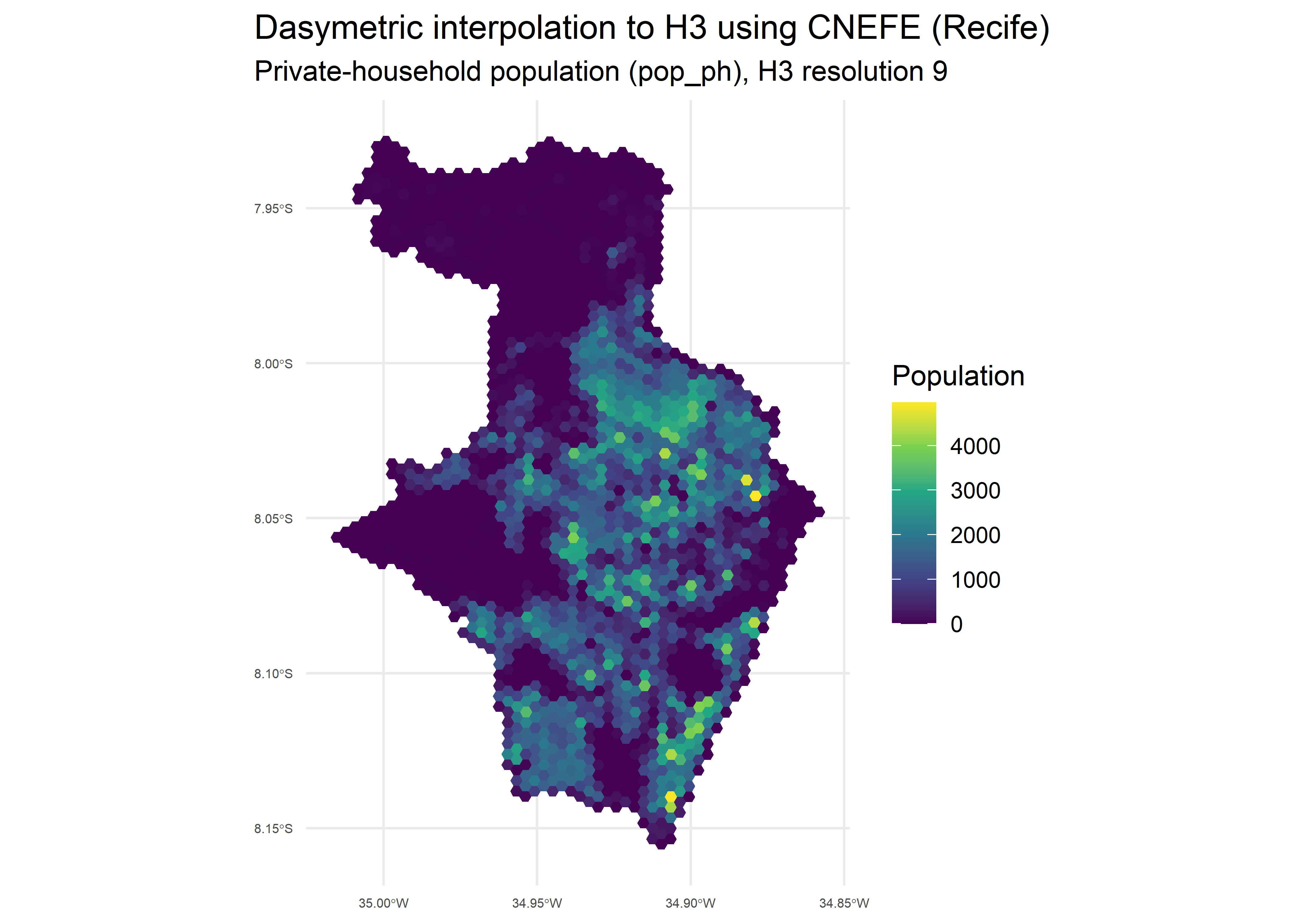

The resulting H3 grid can be mapped to visualize the spatial distribution of each variable. Below we plot the private-household population (pop_ph):

ggplot(rec_hex) +
  geom_sf(aes(fill = pop_ph), color = NA) +
  scale_fill_viridis_c() +
  coord_sf() +
  labs(
    title = "Dasymetric interpolation to H3 using CNEFE (Recife)",
    subtitle = "Private-household population (pop_ph), H3 resolution 9",
    fill = "Population"
  ) +
  theme_minimal() +
  theme(
    plot.title.position = "plot",
    axis.text.x = element_text(size = 5),
    axis.text.y = element_text(size = 5)
  )

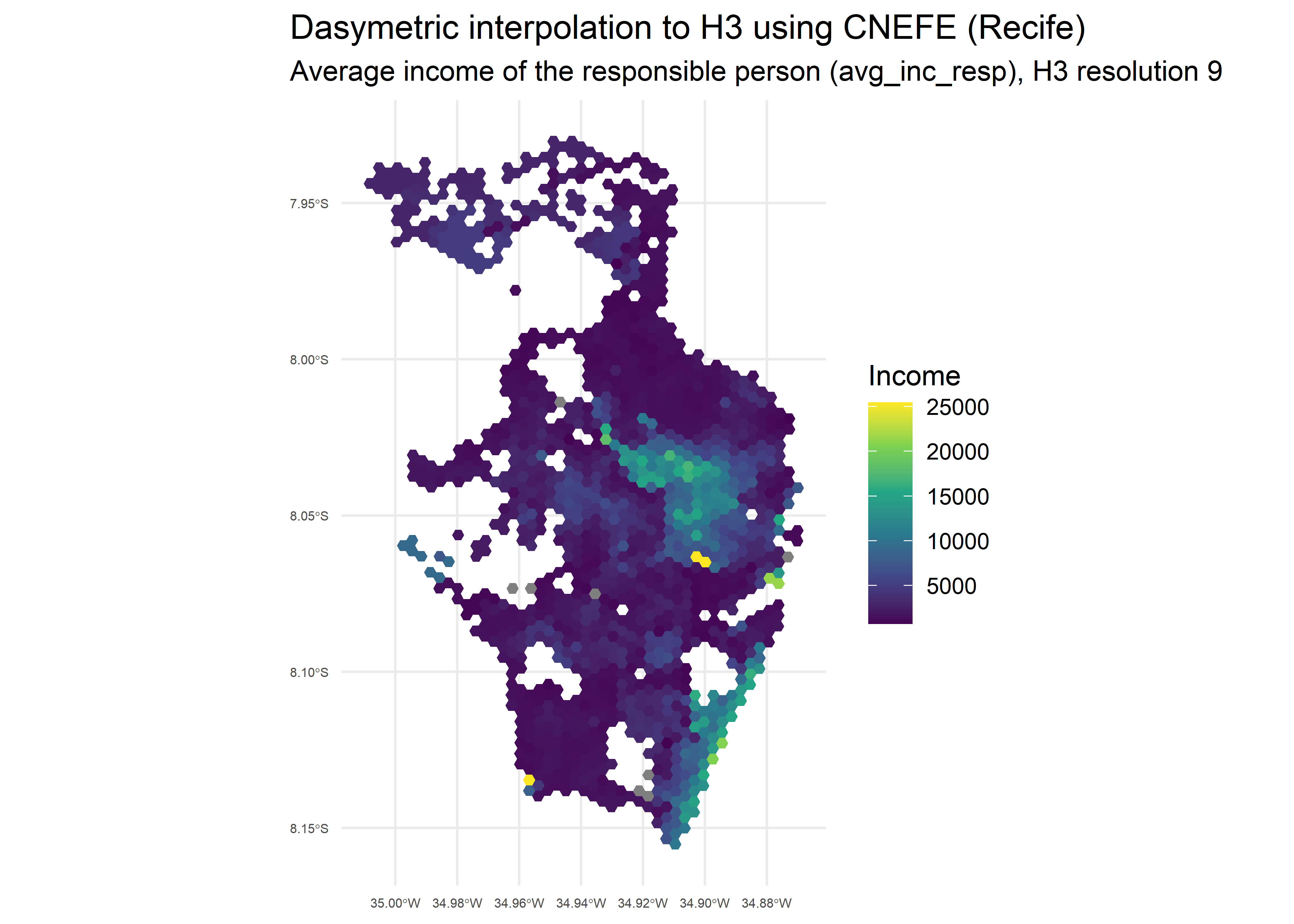

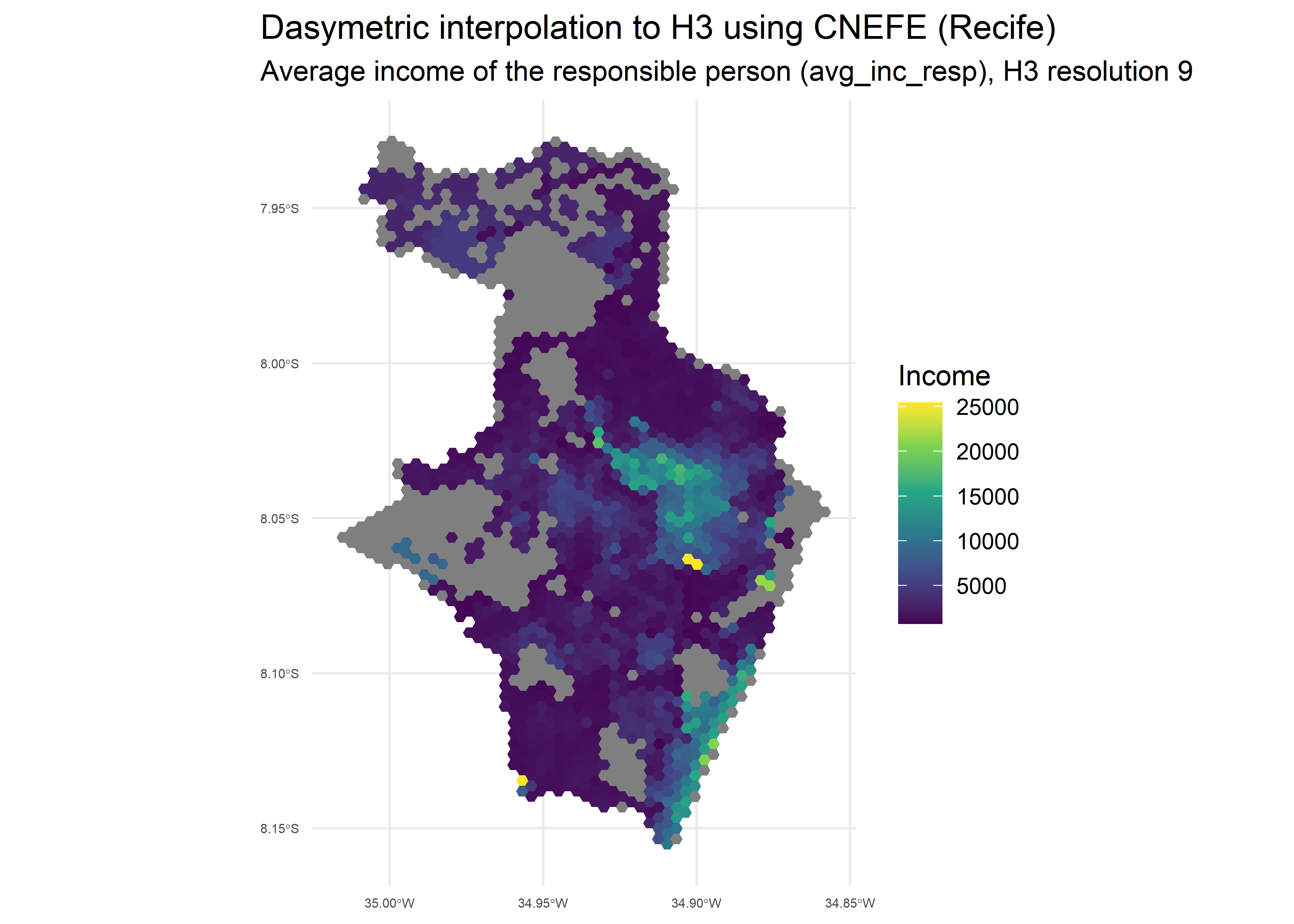

And the average income of the household head (avg_inc_resp):

ggplot(rec_hex) +
  geom_sf(aes(fill = avg_inc_resp), color = NA) +
  scale_fill_viridis_c() +
  coord_sf() +
  labs(
    title = "Dasymetric interpolation to H3 using CNEFE (Recife)",
    subtitle = "Average income of the responsible person (avg_inc_resp), H3 resolution 9",
    fill = "Income"
  ) +
  theme_minimal() +
  theme(
    plot.title.position = "plot",
    axis.text.x = element_text(size = 5),
    axis.text.y = element_text(size = 5)
  )

The full list of available variables is documented in the tracts_variables_ref dataset (see ?tracts_variables_ref). For allocation rules and diagnostic details, see the tracts_to article.

Dasymetric interpolation with tracts_to_polygon()

tracts_to_polygon() follows the same two-stage workflow as tracts_to_h3(), but aggregates the allocated values to user-provided polygons (e.g. neighborhoods, administrative divisions, or custom areas) instead of an H3 grid. Let’s generate the neighborhoods of Recife with the read_neighborhood() function from the geobr package and interpolate the average income of household heads per neighborhood:

library(geobr)

# Reading neighborhoods from geobr package
rec_nei <- read_neighborhood(year = 2022, simplified = F, showProgress = F) |>
  filter(name_muni == 'Recife')

# Dasymetric interpolation to neighborhoods
rec_poly <- tracts_to_polygon(
  code_muni = 2611606,
  polygon = rec_nei,
  vars = c("pop_ph", "avg_inc_resp"),
  verbose = F
)

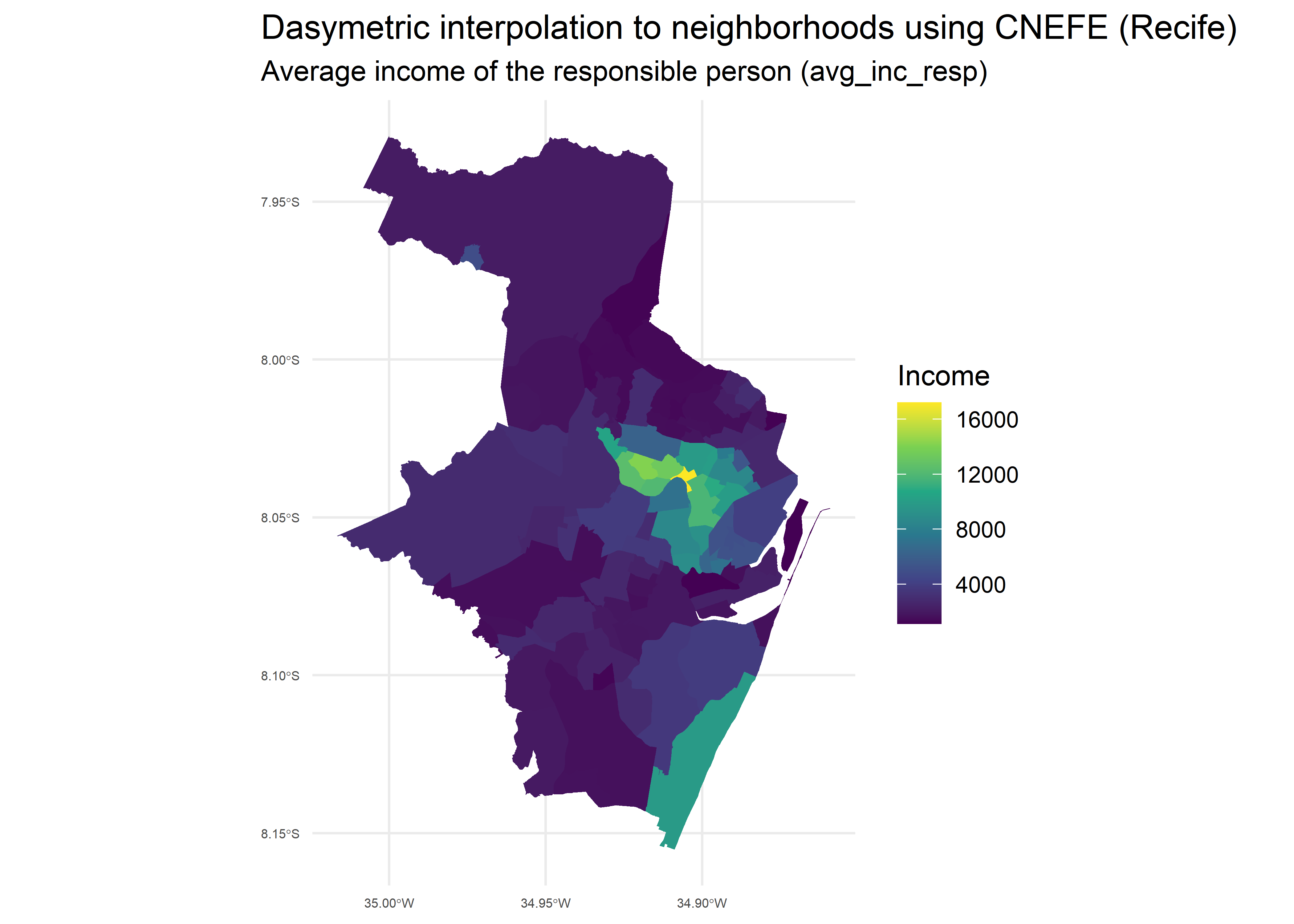

Below we plot the interpolated average income of the household head (avg_inc_resp) at the neighborhood level:

# Plotting variables at the neighborhood level
ggplot(rec_poly) +
  geom_sf(aes(fill = avg_inc_resp), color = NA) +
  scale_fill_viridis_c() +
  coord_sf() +
  labs(
    title = "Dasymetric interpolation to neighborhoods using CNEFE (Recife)",
    subtitle = "Average income of the responsible person (avg_inc_resp)",
    fill = "Income"
  ) +
  theme_minimal() +
  theme(
    plot.title.position = "plot",
    axis.text.x = element_text(size = 5),
    axis.text.y = element_text(size = 5)
  )

See the tracts_to article for details.

DuckDB-powered spatial operations

Under the hood, {cnefetools} uses DuckDB as its default backend to perform spatial operations efficiently, with speedups of up to 20x over pure-R code depending on the number of address points and the size of the spatial units. This is made possible by three DuckDB extensions:

• spatial: performs spatial joins (e.g., point-in-polygon) in SQL, used when aggregating to user-provided polygons or performing dasymetric interpolation.
• zipfs: reads CSV files directly from cached ZIP archives, avoiding the need to extract files to disk.
• h3: assigns geographic coordinates to H3 hexagonal grid cells entirely inside DuckDB.

The R package duckspatial also bridges sf objects and DuckDB’s spatial extension, enabling seamless transfers between R and DuckDB.

All extensions are installed and loaded automatically on first use. A pure-R fallback (backend = "r") is also available, using h3jsr and sf for the same operations on cnefe_counts() and compute_lumi() functions (slower, but without the DuckDB dependency).

Citation

If you use {cnefetools} in your work, please cite the associated preprint:

Pedreira Jr., J. U.; Louro, T. V.; Assis, L. B. M.; Brito, P. L. Measuring land use mix with address-level census data (2025). engrXiv. https://engrxiv.org/preprint/view/5975
